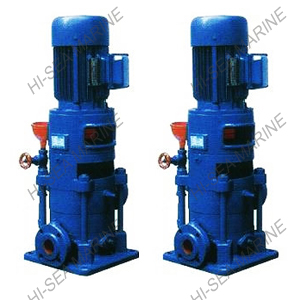

CDLR Marine Multistage Pump

Applications:

CDLR type water pump transmission medium temperature of 130℃below the water. Pump is for the vertical installation, and has the advantages of compact structure, low noise, small occupation area characteristics, mainly used in shipbuilding industry, high-rise building water supply, fire water supply, water supply and drainage, factories and enterprises of low pressure boiler water circulation, centralized heating system.

Model Explanation

for example 40CDL(R)8-10×9

40 — Inlet diameter 40mm

CDL — Marine sub-vertical multi-stage centrifugal pumps

R — Indicated that hot water

8 — Capacity 8 m3/h

10 — Single-stage Head 10 m

9 — Series 9

Main Technical Parameter

Series Name	CDLR
Product Name	Marine Vertical Multistage Pump
Model	HS-CDLR01
Feature	Compact structure, low noise, occupy small area
Capacity m3/h	6.4-42
Motor power kw	1.5-132
Application	Mainly used in high-rise building water supply, fire water supply, drainage for factories and enterprises , low-pressure boiler circulating water, and central heating systems
Medium tempreture	Max130℃

Performance Parameter

◆ Choose the type from the list → CDLR Performance Parameter List

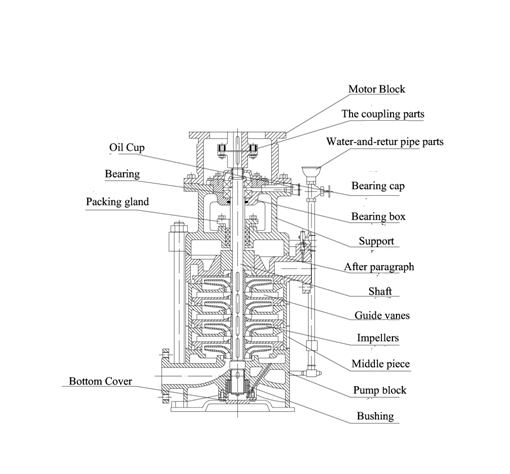

Structure
