CWY Marine Diesle Engine Fire Fighting Pump



Applications:



CWY marine diesel emergency fire pump, its structure is divided into fixed and mobile two. Fixed type import and export for the flange connection or threaded connection, the base for the steel structure frame, or leg fixed trolley frame; mobile for the import and export of pipe thread connection, fixed on a trolley frame. The pump is mainly used in no power under the conditions of the emergency fire pump, but also applies to civil, industrial and mining enterprises, port and dock, storage yard. The pump has the advantages of light weight, small size, flexible movement, rapid starting, water fast time, fuel tank Flow, corrosion resistance, reliable use, convenient maintenance and so on. In allowing the use of the battery, the unit can be installed and used battery starting device.

Note: the diesel engine high pressure oil pipe can be installed protective sleeve and oil leakage prevention device, or a remote control system, in order to separate indication.


Model Explanation


for example 65CWY(G)-40

65 ! Inlet diameter 65 mm

CWY ! Marine diesel emergency fire pump

G ! Max suction head type

40 ! Head 40m



Main Technical Parameter



Series Name CWY
Product Name Marine Diesel Engine Fire Fighting Pump
Model 2600 r/min 2950 r/min 3600 r/min

Engine power

(kw)

Capacity

(m3/h)

Head

(m)

Capacity

(m3/h)

Head

(m)

Capacity

(m3/h)

Head

(m)

40CYW-60

10.5

32.5

12

42

14.6

6

4

50CYW-43

18.5

24.5

21

30

25.5

6

6.3

65CYW-30

31.5

16.5

36

21

44

6

6.3

65CYW-25





20

6

4

65XYW-40





30

7

6

80XYW-55





60

7

16

80CYW-60





30

7

16

Application

Marine pump is widely used for fire fighting in ships, it can be also used in ports, docks, mines and factories

Medium tempreture Max.85≧



Structure

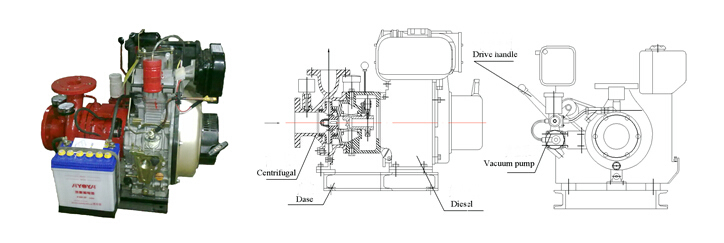

65CWY-30/40 Fixed type

CWY Marine Diesle Engine Fire Fighting Pump

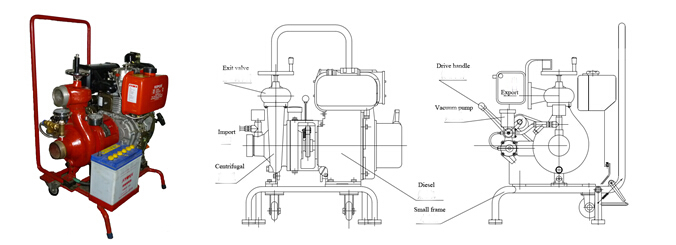

65CWY-30/40 Mobile type



CWY Marine Diesle Engine Fire Fighting Pump

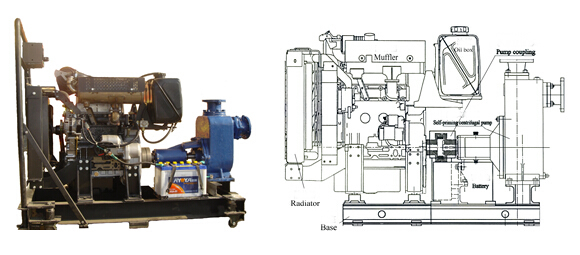

80CWY100CWY150CWY Large size



CWY Marine Diesle Engine Fire Fighting Pump






CWY Marine Diesle Engine Fire Fighting Pump

CWY Marine Diesle Engine Fire Fighting Pump
