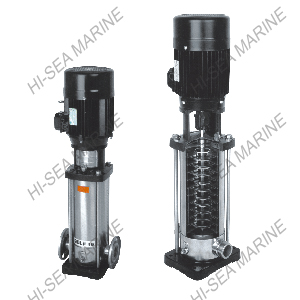

TPY Marine Stainless Steel Multistage Pump

[Search Related Products]

TPY Marine Stainless Steel Multistage Pump


Applications


TPY Series vertical multistage centrifugal pump, all material is stainless steel. For conveying the temperature between -40¡æto +120¡æof water, soft water, swimming pool water or slightly alkaline, and other stainless steel (304 or316L) had no significant corrosion of the liquid, widely used in liquid transport, hot and cold clean water and softened water, mineral water and distilled off circulation and pressurization. Low noise, corrosion resistance, beautiful appearance, small size, smooth operation, easy installation, long service life.


Model Explanation


for example TPY2-67

TPY ¡ª Stainless-steel vertical multi-stage centrifugal pump

2 ¡ª Capacity 2 m3/h

67 ¡ª Head 67 m



Main Technical Parameter


Series Name TPY
Product Name Stainless Steel Vertical Multistage Pump
Model HS-TPY01
Feature Low-noise level, anti-rust, beautiful shapes, compact size, smooth operation, easy installation and long durability etc.
Capacity m3/h 2/4/8/16
Motor power kw 0.37-11
Application

1.city water supply and pressure boost, 2.Marine¡¢Boiler water supply and coolant recycling system, 3.Agriculture irrigation and dehydration 4.Vehicle washing 5.Water treatment, reverse in filtration system and filtering system

Medium tempreture -15¡æ-120¡æ



Performance Parameter



¡ô Choose the type from the list ¡ú TPY Performance Parameter

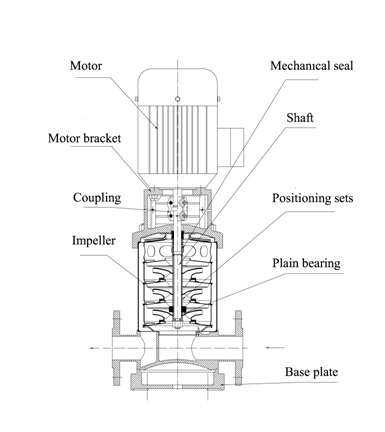

Structure



TPY Marine Stainless Steel Multistage Pump





Our Certification



TPY Marine Stainless Steel Multistage Pump
