GCD Marine Bulkhead Drive Device

Applications:

GCD Type Marine Bulkhead Drive Device is suitable to vessels in flammable and explosive place carrying chemicals, liquefied gas, raw petroleum and commodity petroleum. Through this device, the marine motor installed in the engine room drives the mechanical equipment (e.g. liquid pump, ballast pump) in flammable and explosive place.

The GCD type bulkhead drive device meets the specification requirements of the classification society and features in simple structure and reliable drive.

Main Technical Parameter

Type	Cooling Water (m3/h)	Allowable Torque (Nm)	Allowable Revolution (rater/min)	Weight (kg)
GCD-30	1	72	3600	108
GCD-40	1	165	3600	110
GCD-50	1	360	3600	112
GCD-60	1	600	3600	114

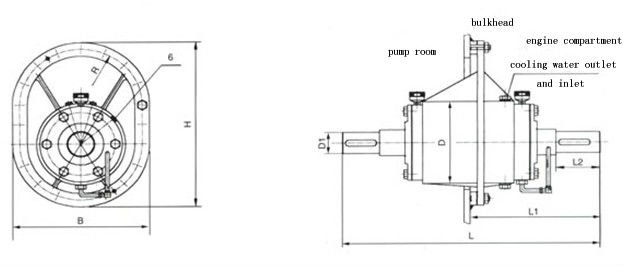

Structure
