CP Marine Injection Pump

[Search Related Products]

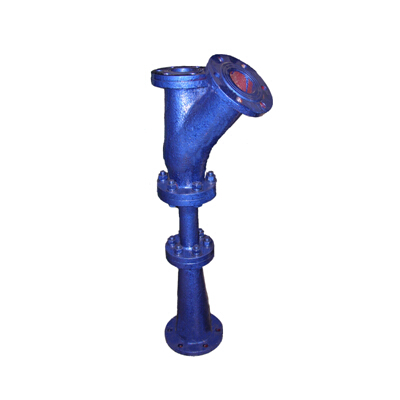

CP Marine Injection Pump


Applications:


The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for 'spray, suction, mixed, expansion of' four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).


Model Explanation


for example CP(T)10-0.7

CP ¡ª Marine ejector pump

10 ¡ª Flow 10 m3/h

0.7 ¡ª Working water pressure 0.7Mpa


Main Technical Parameter



Series Name CP
Product Name Marine Direct-connected Pump
Model HS-CZB01
Feature Compact structure, low noise, occupy small area
Capacity m3/h 5-200
Suction head m 2-7
Delivery head m 5-9
Water pressure Mpa 0.3/0.5/0.7
Application

Capable to delivery high viscosity liquid, and effumability liquid

Medium tempreture -5¡æ-80¡æ



Performance Parameter



Type

Work water/ Intel/ Outlet flange

(mm)

Capacity

(m3/h)

Pressure

(Mpa)

Wastage

(m3/h)

Hs

(m)

Delivery

(m)

Weight (kg)

Copper

Iron

CP5-0.7

25/50/32

5

0.7

3.6

4

8

11

10

CP5-0.3

32/50/50

5

0.3

6

4

5

17

15

CP10-0.7

32/50/50

10

0.7

7

4

8

14

13

CP10-0.3

40/65/65

10

0.3

12

4

5

23

21

CP15-0.5

50/6580

15

0.5

24

7

11

27

23

CP15-0.3

50/65/80

15

0.3

19

4

5

27

23

CP20-0.7

50/65/80

20

0.7

14

4

8

27

23

CP20-0.3

50/65/80

20

0.3

24

4

5

30

28

CP30-0.7

50/80/65

30

0.7

21

4

8

30

28

CP30-0.3

65/100/100

30

0.3

36

4

5

43

41

CP50-0.7

65/100/80

50

0.7

35

4

8

45

43

CP50-0.3

80/125/125

50

0.3

55

3

6

50

47

CP100-0.7

80/150/125

100

0.7

60

2

9

90

82

CP100-0.3

125/175/150

100

0.3

110

3

6

88

80

CP200-0.7

125/200/200

200

0.7

120

2

9

112

103

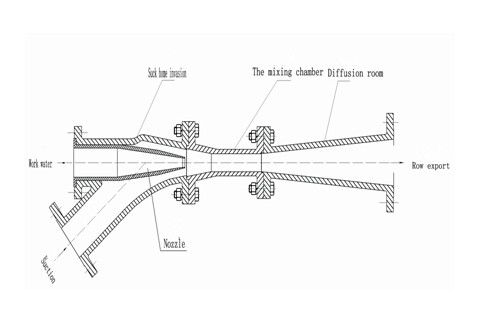

Structure


CP Marine Injection Pump





CP Marine Injection Pump
