DIN5299 Egg Type Spring Hook

DIN5299 Egg Type Spring Hook

DIN 5299 egg type spring hook is made by high quality carbon steel or stainless steel. It has the advantages of small volume, light weight and high strength. And it plays an important role in improving the operational efficiency of hoisting equipment and expanding the scope of work of crane.

Product details:

1. Item: DIN 5299 egg type spring hook

2. Material: carbon steel, stainless steel

3. Technology: drop forged, casting

4. Surface: polished, zinc plated

5. Size: 5*50mm-12*140mm

6. Usage: lifting industry

7. Breaking load: 4 times of working load

8. Special specifications and marks can be made according to customers requirement

Specification：

Size	A	C	D	L	N.W.
mm	mm	mm	mm	mm	kg/100pcs
5*50	25	7	5	50	1.7
6*60	30	8	6	60	2.5
7*70	35	10	7	70	4.4
8*80	40	11	8	80	6.6
9*90	45	12	9	90	9.3
10*100	50	15	10	100	13
11*120	57	17	11	120	18.5
12*140	67	21	12	140	25

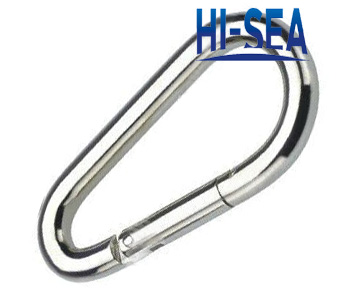

DIN5299 Egg Type Spring Hook

Sketch of the DIN5299 egg type spring hook

Stainless steel egg type spring hook

Carbon steel egg type spring hook
