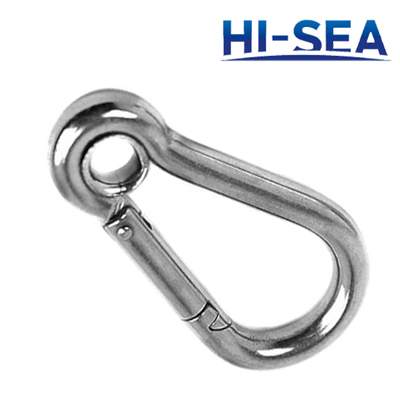

Snap Hook with Screw and Eyelet
Snap hook with screw and eyelet is made by high quality stainless steel with advanced international production process. The most outstanding advantage of it is the solid and safety structure. Snap hooks made by 304 stainless steel have good cost performance. They have excellent corrosion resistant and brightness surface.Product details:
1. Item: snap hook with screw and eyelet
2. Material: stainless steel
3. Technology: drop forged
4. Surface: polished, zinc plated
5. Size: 5*50mm-13*160mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement
Specification£º
Size |
A |
B |
C |
D |
L |
N.W. |
mm |
mm |
mm |
mm |
mm |
mm |
kh/100pcs |
5*50 |
25 |
5 |
6 |
5 |
50 |
2.1 |
6*60 |
30 |
5 |
7 |
6 |
60 |
3.22 |
7*70 |
35 |
7 |
7.5 |
7 |
70 |
5.04 |
8*80 |
40 |
10 |
8.5 |
8 |
80 |
7.7 |
9*90 |
45 |
10 |
9 |
9 |
90 |
9.9 |
10*100 |
50 |
13 |
10 |
10 |
100 |
16.2 |
11*120 |
57 |
13 |
16 |
11 |
120 |
22 |
12*140 |
67 |
15 |
18 |
12 |
140 |
28 |
13*160 |
74 |
17 |
25 |
13 |
160 |
37 |

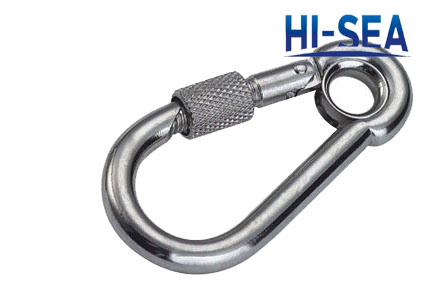

Sketch of the snap hook with screw and eyelet

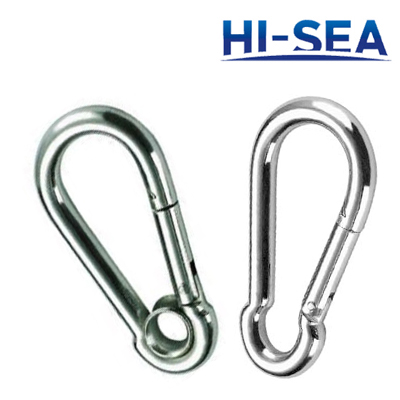

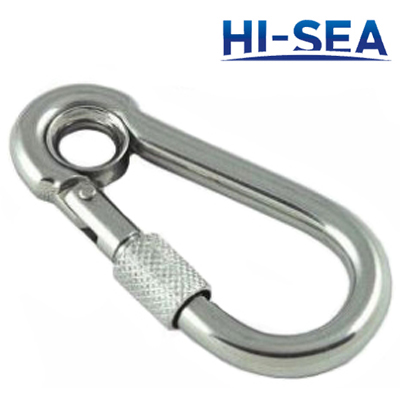

Snap hook with screw and eyelet
