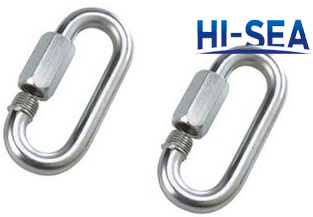

Zinc Plated High Tensile Quick Link

Zinc Plated High Tensile Quick Link

Zinc plated high tensile quick link mainly used to link when lifting heavy weights. It is indispensable to lifting equipment. Because of its solid structure, it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment. And pecial specification and marks can be made according to customers requirement.

Product details:

1. Item: Zink plated high tensile quick link

2. Material: carbon steel

3. Technology: drop forged, casting

4. Surface: zinc plated

5. Size: 7g/pc-558g/pc

6. Usage: lifting industry

7. Breaking load: 4 times of working load

8. Special specifications and marks can be made according to customers requirement

Specification：

Weight	D1	D3	d	m
g/pc	mm	mm	mm	mm
7	10	28	3.5	5
12	11	32	4	5
21	13	39	5	6
28	14	46	6	9
51	16	53	7	10
77	18	58	8	10
127	20	69	10	12
224	24	83	12	15
358	27	95	14	16
558	28	116	16	20

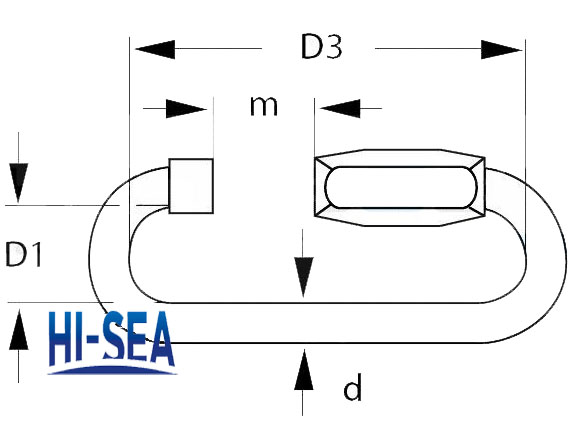

Sketch of the zinc plated high tensile quick link
