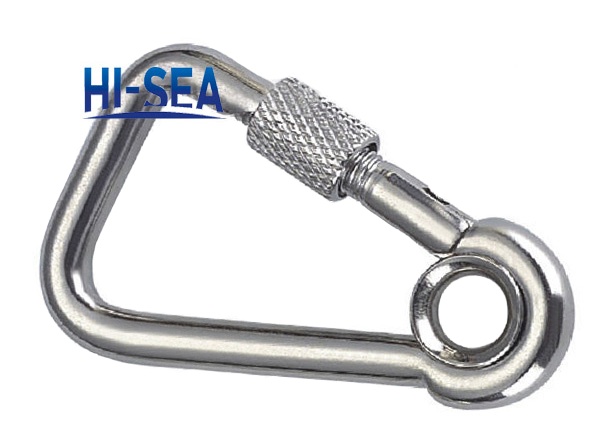

Oblique Angle Snap Hook With Screw and Eye
Oblique angle snap hook with screw and eye has bigger pulling force than others. Bacause the snap hook with screw has bigger bearing capacity than normal snap hook.. So, if it is used in the place with heavier bearing, to be on the safe side, it is recommemded that the snap hook with screw should be chosen.
Product details:
1. Item: Oblique angle snap hook with screw and eye
2. Material: stainless steel
3. Technology: drop forged
4. Surface: polished, zinc plated
5. Size:6*60mm-11*120mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement
Specification£º
Size |
C |
D |
E |
L |
W.L.L |
N.W. |
mm |
mm |
mm |
mm |
mm |
lbs |
kg/100pcs |
6*60 |
6 |
6 |
9 |
60 |
250 |
3.25 |
8*80 |
8 |
8 |
12 |
80 |
400 |
7.2 |
10*100 |
10 |
10 |
16 |
100 |
650 |
14.5 |
11*120 |
14 |
11 |
22 |
120 |
700 |
21.7 |
Sketch of the oblique angle snap hook with screw and eye
Oblique angle snap hook with screw and eye
