Oblique Angle Snap Hook

Oblique Angle Snap Hook

Oblique angle snap hook is made by high carbon srteel with hot dip galvanizing on the surface. The size of is from 6*60mm to 11*120mm. And Special specification and marks can be made according to customers requirement. In order to assure the quality of products and to be responsible to the clients, all the procedures from raw material purchase to delivery will be strictly examed.

Product details:

1. Item: Oblique angle snap hook

2. Material: high carbon steel

3. Technology: drop forged

4. Surface: hot dip galvanized, zinc plated

5. Size:6*60mm-11*120mm

6. Usage: lifting industry

7. Breaking load: 4 times of working load

8. Special specifications and marks can be made according to customers requirement

Specification：

Size	C	D	E	L	W.L.L.	N.W.
mm	mm	mm	mm	mm	lbs	kg/100pcs
6*60	8	6	10	60	260	2.8
8*80	10	8	13	80	400	6.8
10*100	12	10	18	100	650	13.6
11*120	15	12	24	120	700	19.4

Oblique Angle Snap Hook

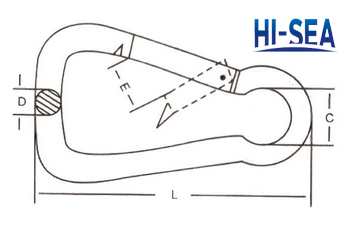

Sketch of the oblique angle snap hook

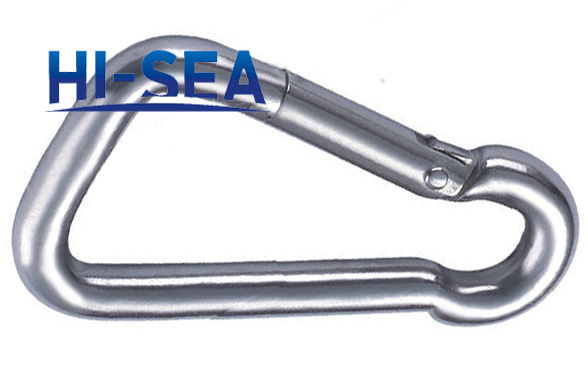

Oblique angle snap hook
