Drawer type Flame Arrestor

Drawer type Flame Arrestor:

1.Manufacture standard:GB5908,API2000.

2.Explosive-proof grade:BS5501:ⅡA,ⅡB,ⅡC.

3.Working pressure:0.6- 5.0Mpa, 150Lb-600 Lb.

4.Flange connection:GB, SH, HGJ, JB, ANSI, DIN, JIS.

5.Working temperature:<480⁰C.

6.Installation type:Middle of Pipe.

7.Main material of construction:

NO.

Component

Body

Cell

Housing

Bolt/Nut

Material

Stainless Steel

Aluminums

Casting

304

316

316L

304

316

316L

304

316

35CrMo

8.Fundamental dimension of drawer type flame arrester:

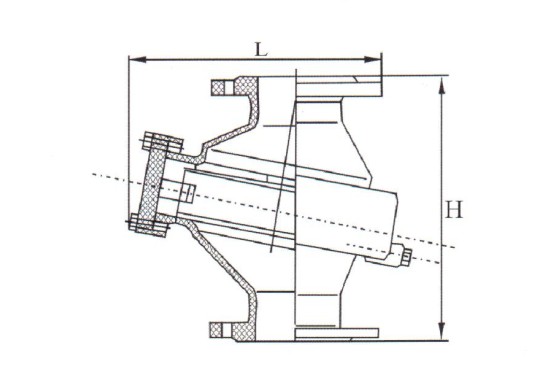

9.Drawing of drawer type flame arrester:
