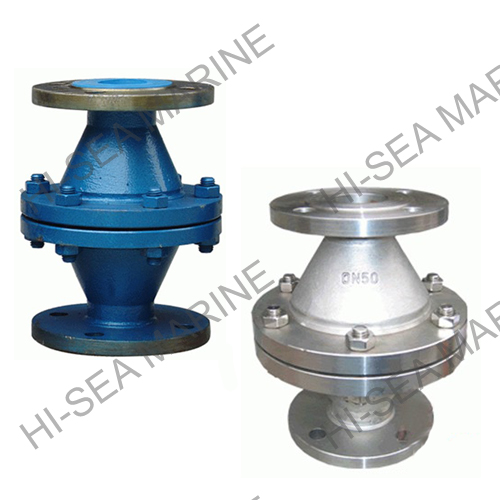

Pipe Explosion Proof Flame Arrestor
[Search Related Products]
Pipe Explosion Proof Flame Arrestor:
1.Manufacture standard:GB5908,API2000.
2.Explosive-proof grade:BS5501:¢òA,¢òB,¢òC.
3.Working pressure:0.6- 5.0Mpa, 150Lb-600 Lb.
4.Flange connection:GB, SH, HGJ, JB, ANSI, DIN, JIS.
5.Working temperature:<4800C.
6.Installation type:Middle of Pipe.
7.Main material of construction:
NO. |
1 |
2 |
3 |
4 |
Component |
Body |
Cell |
Housing |
Bolt/Nut |
Material |
Stainless Steel Aluminums Casting |
304 316 316L |
304 316 316L |
304 316 35CrMo |
8.Fundamental dimension of Pipe Explosion Proof Flame Arrestor:
DN | 20 | 25 | 40 | 50 | 80 | 100 | 150 | 200 |
L | 195 | 195 | 245 | 245 | 280 | 335 | 460 | 520 |
H | 200 | 200 | 240 | 240 | 250 | 260 | 360 | 420 |

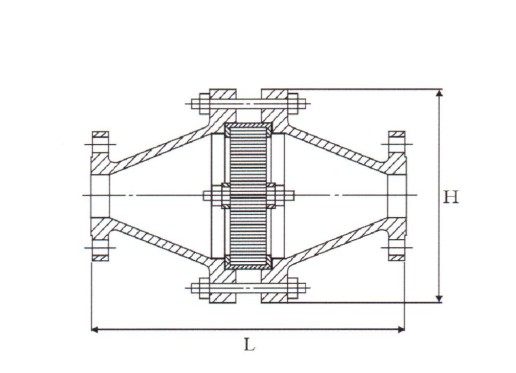

9.Drawing of Pipe Explosion Proof Flame Arrestor:
