Explosion Proof Vent Flame Arrestor
[Search Related Products]
1.Manufacture standard:GB5908,API2000.
2.Explosive-proof grade:BS5501:¢òA,¢òB,¢òC.
3.Working pressure:0.6- 5.0Mpa, 150Lb-600 Lb.
4.Flange connection:GB, SH, HGJ, JB, ANSI, DIN, JIS.
5.Working temperature:<4800C.
6.Installation type:Middle of Pipe.
7.Main material of construction:
|
NO. |
1 |
2 |
3 |
4 |
|
Component |
Body |
Cell |
Housing |
Bolt/Nut |
|
Material |
StainlessSteel
Aluminums Casting |
304 316 316L |
304 316 316L |
304 316 35CrMo |
8.Fundamental dimension of Explosion Proof Vent Flame Arrestor:
| DN | 20 | 25 | 40 | 50 | 80 | 100 | 125 | 150 |
| L | 108 | 159 | 219 | 219 | 273 | 273 | 325 | 325 |
| H | 334 | 338 | 376 | 376 | 458 | 462 | 490 | 506 |

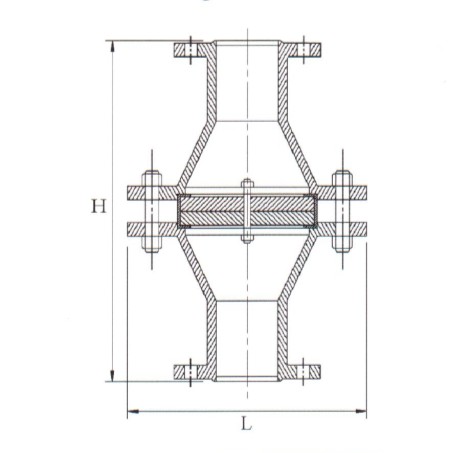

9.Drawing of Explosion Proof Vent Flame Arrestor:
