FPB Type Gas Flame Arrestor

[Search Related Products]

FPB Type Gas Flame Arrestor

FPB Type Gas Flame Arrestor:

1.DN:15¡«400mm.

2.Operating pressure:1.6Mpa.

3.Connection type:Flange.

4.Medium:Flammable vapors.

5.Sealing material:Hard alloy.

6.Material:CS/SS.

7.Dimension Table:

DN
Structure dimension
Model
D
L
15
1.5T
18
600
20
2.0T
25
600
25
2.5T
32
600
32
3.2T
38
600
40
4.0T
48
600
50
5.0T
57
700
65
6.5T
76
700
80
8.0T
89
700
100
10T
108
700
125
12.5T
133
700
150
15T
159
800
200
20T
219
800
250
25T
273
800
300
30T
325
800
350
35T
377
800
400
40T
426
800

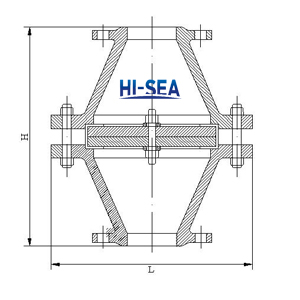

8.Drawing of FPB Type Gas Flame Arrestor:

FPB Type Gas Flame Arrestor
