Vent Flame Arrestor:
1.Manufacture standard :GB5908,API2000.
2.Explosive-proof grade:BS5501:¢òA,¢òB,¢òC.
3.Working pressure:0.6- 5.0Mpa, 150Lb-600 Lb.
4.Flange connection:GB, SH, HGJ, JB, ANSI, DIN, JIS
5.Working temperature:<4800C.
6.Installation type:Middle of Pipe.
7.Main material of construction:
|
NO. |
1 |
2 |
3 |
4 |
|
Component |
Body |
Cell |
Housing |
Bolt/Nut |
|
Material |
Stainless Steel Aluminums Casting |
304 316 316L |
304 316 316L |
304 316 35CrMo |
8.Fundamental dimension of vent flame arrester:
| DN | 40 | 50 | 80 | 100 | 150 |
| L | 180 | 180 | 210 | 250 | 290 |
| H | 160 | 160 | 125 | 155 | 175 |

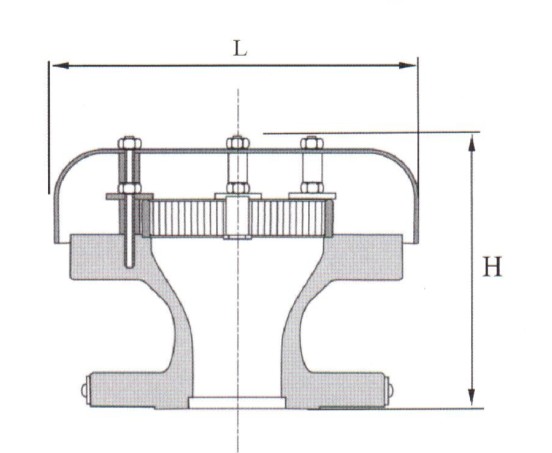

9.Drawing of vent flame arrester:
