Four Wire Ropes Timber Grab

Four Wire Ropes Thimber Grab

Four wire ropes timber grab is designed for gantry crane and all kinds of bridge crane to loading and unloading wood. It has the characteristics of reasonable structure, conevinet and safe operation. It is not noly apply to the port, but also for railway, wood processing, timber storage and transportation and other industries ideal loading and unloading tools.

Product Details:

1. Rated Capacity: 5-25 ton

2. Dead Weight: 2.2-6.2 ton

3. Suitable for all kinds of lifting applicances

4. High efficiency and flexibility

5. Simple structure, easy to operation

6. Stable in working under any circumstances.

7. Suit four hoisting drums crane

Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity

Volume

Dead Weight

Wire Rope Dia.

A

B

C

D

E

T

T

mm

mm

mm

mm

mm

mm

5

1.7

2.2

18.5

1400

3467

3027

215

3807

10

2.5

4

21.5

1800

4108

3603

500

4451

16

1.9

4.4

28

2000

3475

3968

600

4857

25

2.3

6.2

32

2000

3819

4551

500

5453

Four Wire Ropes Timber Grab

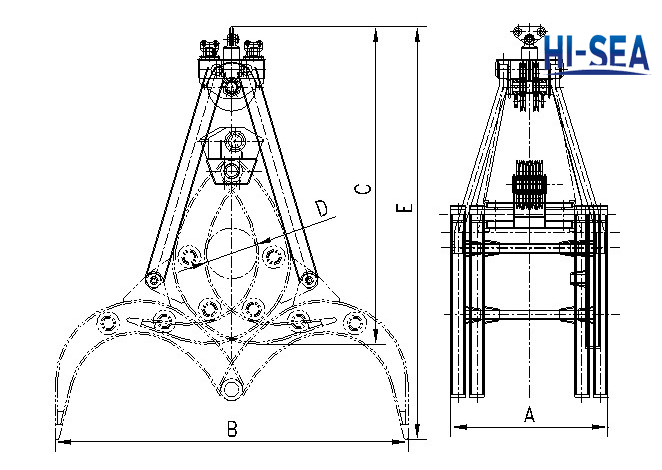

Sketch of the four wire ropes timber grab
