Timber Grab
Hydraulic Log Grab
[Search Related Products]
TECHNICS FEATURES

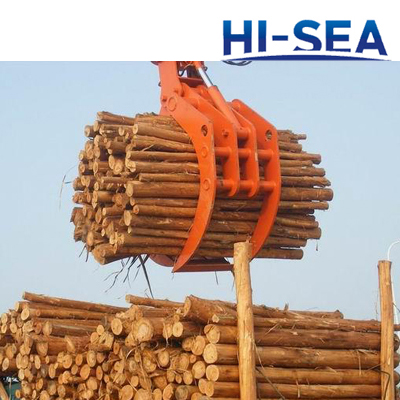

Hydraulic log grab is used in timber woods factory. High breakout force, fast hydraulic cycle time, automatic leveling on any position, and greater productivity.
Fully hydraulic powered steering with flow-amplified system. Pilot operated control for loader hydraulic system, power shift transmission makes operation convenient and flexible. We can design such grab according to the customer's request
1. Fast hydraulic cycle time
2. Greater productivity
3. Main components of hydraulic system imported from Europe, so multistep buffering open style to keep longer service life
4. Designs to customer specification, including volume and unladen weight;
5. Assembly and commissioning by SHYP's specialist technicians;
6. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
|
Hydraulic Timber Grab |
|||
|
Type |
Cap. |
Use Height |
Weight |
|
HJE1.0-0.2-00 |
0.1 |
1200mm |
0.5t |
|
HJE2.0-0.4-00 |
0.2 |
1380mm |
0.8t |
|
HJE3.0-0.6-00 |
0.6 |
1580mm |
1.0t |
|
HJE4.0-0.8-00 |
0.8 |
1850mm |
1.3t |
|
HJE6.0-1.0-00 |
1 |
2120mm |
1.5t |
|
HJE8.0-1.2-00 |
1.2 |
2350mm |
1.8t |
Hydraulic Log Grab
