Timber Grab
Timber Grab
[Search Related Products]
Application of Timber Grab:
It is mainly for handling of logs and timber of different sizes. It is applicable for log yard and port unloading when operating with tower cranes, gantry cranes and other type of cranes.
Features of Timber Grab
1. Low dead weight;
2. High SWL;
3. Long Service time;
4.Grab Capacity: 0.75m3 ¡« 5m3
5. Grab SWL: 5t ¡« 25t
Advantages of Timber Grab:
1. The timber grab is equipped with all kinds of crane for loading and unloading timber;
2. Optimum structure, convenient operation, highly loading ratio;
3. Using 3D Virtual Design to secure the product's quality and outward appearance;
Specification:
|
Rated capacity |
Dead weight |
Height |
Wire rope Dia. |
A |
B |
C |
¦µD |
E |
|
T |
T |
m |
mm |
mm |
mm |
mm |
mm |
mm |
|
5 |
2.2 |
11.5 |
18.5 |
1400 |
3467 |
3027 |
215 |
3807 |
|
10 |
4 |
14 |
21.5 |
1800 |
4108 |
3603 |
500 |
4451 |
|
16 |
4.4 |
14 |
28 |
2000 |
3475 |
3968 |
600 |
4857 |
|
25 |
6.2 |
14.5 |
32 |
2000 |
3819 |
4551 |
500 |
5453 |

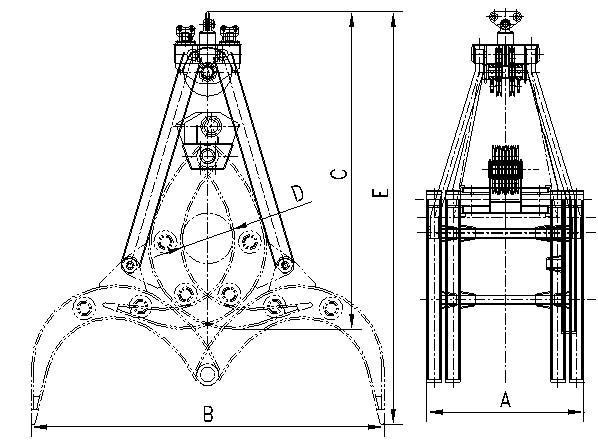

Sketch of the wood grab

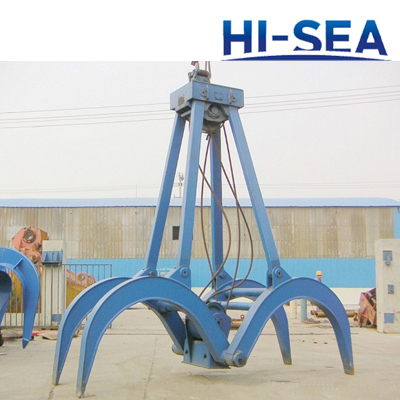

Timber Grab
