Single Rope Timber Grab
Single rope timber grab is a kind of effective tool working with one hoisting drum crane to replace people loading and unloading log bundle. In the working process, the person and the log are serparated. So, it avoid the log roll to hurt person and the wire rope fracture. It is not only greatly improve the security, but also the production efficiency.
Product Details:
1. Rated Capacity: 5-25 ton
2. Volume: 1-2.3m³
3. Dead Weight: 2.2-9 ton
4. Cost-effective, economical and practical
5. Stable in working under any circumstances.
6. Works for the crane with one hoisting drum
Specification:
|
Rated Capacity |
Volume |
Dead Weight |
Wire Rope Dia. |
A |
B |
C |
D |
E |
|
T |
m³ |
T |
mm |
mm |
mm |
mm |
mm |
mm |
|
5 |
1 |
2.2 |
19.5 |
2082 |
2771 |
4199 |
3405 |
1560 |
|
10 |
1.9 |
3.8 |
24 |
3377 |
4615 |
5408 |
4365 |
2000 |
|
16 |
1.9 |
4.8 |
28 |
3377 |
4615 |
5408 |
4365 |
2000 |
|
25 |
2.3 |
9 |
32 |
2691 |
3819 |
6134 |
4944 |
2000 |

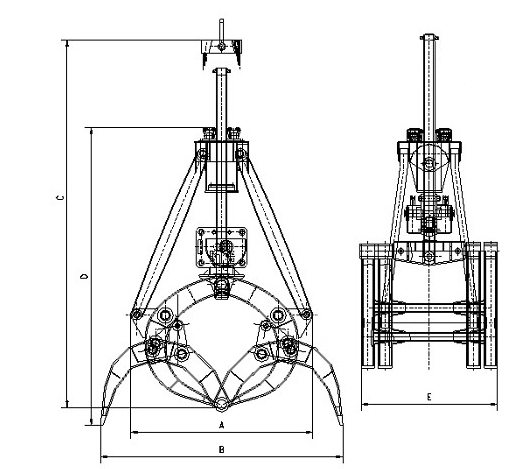

Sketch of the single rope timber grab
