Timber Grab
Two Ropes Timber Grab
[Search Related Products]

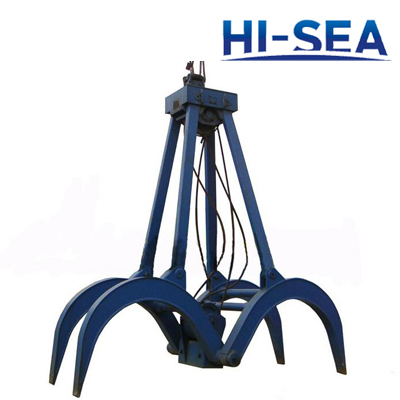

Two Ropes Timber Grab
Two ropes timber grab is a kind of grab that loading and unloading wood for double cable marine crane, and all kinds of bridge crane, gantry grab. It has advantages of reasonable structure, convenient and easy operation. It is not only suitable for port, but also the ideal loading and unloading tools of railway, wood processing, timber storage and transportation and other industries.
Product Details:
1. Rated capacity: 5-16 ton
2. Grab volume: 1.5-2.2 m³
3. Dead weight: 2-5 ton
4. Simple mechanical structure
5. Low dead weight
6. Convenient operation
7. Suitable for all kinds of lifting applicances
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity |
Volume |
Dead Weight |
Wire Rope Dia. |
A |
B |
C |
D |
E |
T |
m³ |
T |
mm |
mm |
mm |
mm |
mm |
mm |
5 |
1.7 |
2 |
21 |
1400 |
3467 |
3117 |
215 |
3897 |
10 |
1.9 |
3.8 |
28 |
2000 |
3473 |
3276 |
500 |
4217 |
16 |
2.2 |
5 |
32 |
2200 |
3556 |
3818 |
500 |
4581 |

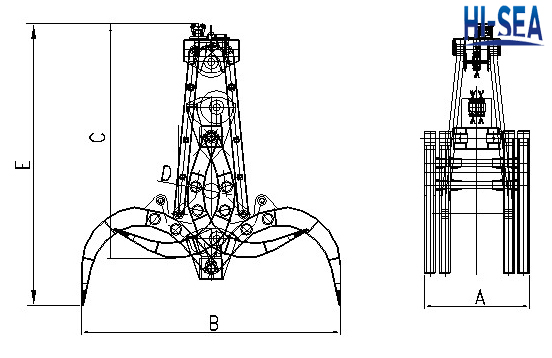

Sketch of the two ropes timber grab
Two Ropes Timber Grab
