Glass Fiber Reinforced Plastic Buoy

Glass Fiber Reinforced Plastic Buoy

Glass fiber reinforce plastic buoy is a new type of water navigation equipment. It is produced by new type polymer composite materials such as glass fiber reinforced plastic and metal materials.

GFRP buoy’s body is made of new materials. The structure of each part is assembled and it is light weight which is 1/3 of that of steel buoy. GFRP buoy is easy to transport and deploy.

Features of GFRP Buoy:

A. reistance to seawater and atomospheric corrosion;

B. high temperature resistance, strong sunlight exposure;

C. less sea lice and easy to clean, long maintenance free period

D. Material body color, eye-catching appearance, long color retention time, good navigation performance

Sizes: 0.6m, 0.8m,1.2m, 1.5m, 1.8m, 2.4m etc. We can customize the sizes of buoys to meet your special need.

Certificate: CCS/IALA

Specifications of 0.8m GFRP Buoy

1. Body Diameter: 800mm

2. Body Weight: 1600mm

3. Freeboard: 400mm

4. Focal Plane Height: 1095mm

5. Draft: 600mm

6. Reserve Buoyancy: 200kg

Parameters of GFRP Buoy

Model	FRP0.6	FRP0.8	FRP1.2	FRP1.5	FRP1.8	FRP2.4
Body Diameter(mm)	600	800	1200	1500	1800	2400
Body Height(mm)	2400	1600	2250	3900	5500	7400
Freeboard(mm)	420	400	400	600	700	1000
Focal Plane Height(mm)	1520	1095	1680	2660	3175	4575
Draft Height(mm)	800	600	600	1200	2500	3000
Reserve Buoyanacy(kg)	120	200	450	1000	1780	4500

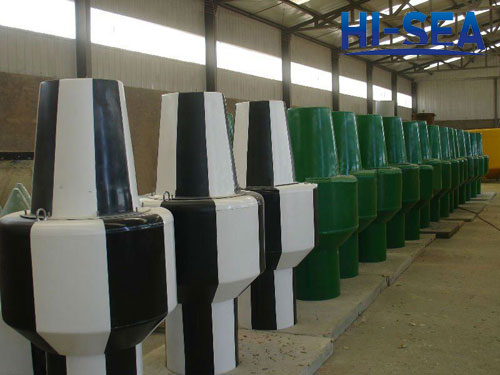

0.8m GFRP Buoy
