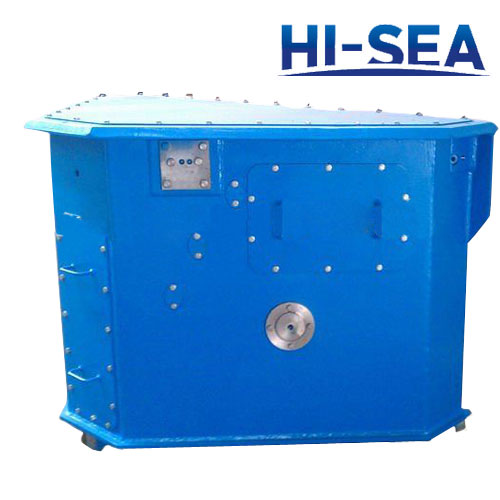

Hydraulic Shark Jaw
Hydraulic shark jaw is driven by hydraulic pump station to clamp the wire or chains and avoid the sliding during the anhor handling operation.
Features
1. Shark jaws are suitable both the anchor chains and wire ropes;
2. Replaceable jaw inserts for different chain sizes;
3. Raised and lowered using heavy duty marine grade hydraulic cylinders;
4. Jaws can be retracted to the same level with the deck;
5. Remote-controlled operations from a control panel;
6. A dedicated hydraulic power is provide with each unit
Specification
1. Safe Working Load: 300ton;
2. Bollard Pull: 85ton;
3. Holding Capacity: 300ton;
4. Required Power: 22KW
5. Color: painted as what you require;
6. Smooth Surface without burs or sharp edges;
7. Certificate: CCS, ABS,BV, GL, DNV,LR,RINA etc.
Technical Parameters for Your Reference
|
Shark Jaw Model |
Towing Pin Model |
Bollard Pull(ton) |
Holding Capacity(ton) |
Power Required(kw) |
|
SJ-100 |
TP-100 |
40 |
100 |
15 |
|
SJ-200 |
TP-200 |
60 |
200 |
22 |
|
SJ-300 |
TP-300 |
85 |
300 |
22 |
|
SJ-400 |
TP-400 |
120 |
400 |
30 |
|
SJ-500 |
TP-500 |
150 |
500 |
30 |
|
SJ-700 |
TP-700 |
200 |
700 |
37 |
