Hydraulic Towing Pin with Shark Jaw

Hydraulic Towing Pin with Shark Jaw

Hydraulic towing pin and shark jaws are parts of shark jaw device that are installed on the deck for the safe, quick and effective anchor handling operations. Their main function is to clamp the chains or steel wires and to avoid the chains, steel wires and anchor chains.

Features

1. Applicable to the tug, anchor handling and supply vessels or other types of ships;

2. Shark jaws with towing pins;

3. Electric-driven or Hydraulic-driven;

4. Suitable for anchor chains and wire ropes;

5. Remote-controlled operations;

6. Emergency release system with push of a button

7. Replaceable jaw inserts for different chain sizes

8. Other accessories: hydraulic pump station, electrical control panel)

Technical Parameters

1. Capacity: 80~700 tonnes

2. Material: Steel

3. Surface: Smoothened with no burs or sharp edges;

4. Painting: as you require

5. Certificate: CCS, ABS,BV, GL, DNV,LR,RINA etc.

6. Customized size as you require

Basic Parameters for Your Reference

Shark Jaw Model

Towing Pin Model

Bollard Pull(ton)

Holding Capacity(ton)

Power Required(kw)

SJ-100

TP-100

40

100

15

SJ-200

TP-200

60

200

22

SJ-300

TP-300

85

300

22

SJ-400

TP-400

120

400

30

SJ-500

TP-500

150

500

30

SJ-700

TP-700

200

700

37


Hydraulic Towing Pin with Shark Jaw

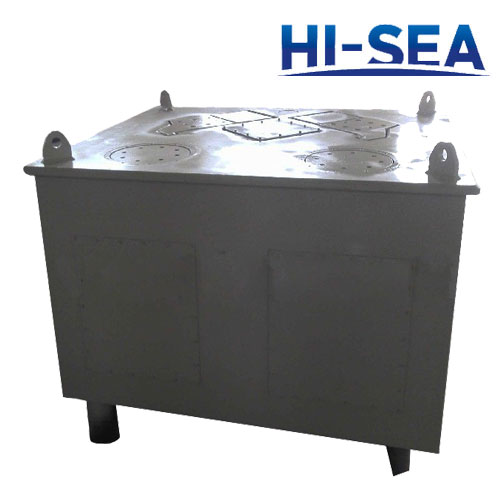

300T Shark Jaw with Towing Pin

Hydraulic Towing Pin with Shark Jaw

Shark Jaw and Towing Pin
