Shark Jaw with Hydraulic Pump Station

[Search Related Products]

Shark Jaw with Hydraulic Pump Station

Shark Jaw with Hydraulic Pump Station

Shark jaw is one component of shark jaw device which is widely used on various types of ships for the safety of vessels. It is mainly used to clamp the chains or wire cables to prevent the sliding of cables, wire ropes, and anchor chains. The jaws rises during the operation of handling and towing and falls to flush with deck to keep the deck slide way.

Features of Shark Jaw

1. Hydraulic anchor handling device to secure chains or wire during operation;

2. Controlled by remote control panel located in the pilot house;

3. Each shark jaw can be raised and locked independently;

4. Watertight shark jaws mounting frame;

5. Pressure maintained by hydraulic cylinders;

6. Quick release system;

7. Replaceable jaw inserts for different chain sizes

8. Available accessories: hydraulic pump station, electrical box,control panel etc.

Technical Parameters

1. S.W.L: up to 700 tonnes;

2. Drive: hydraulic cylinders

3. Surface: Smoothened with no burs or sharp edges;

4. Painting: as you require

5. Certificate:CCS, ABS,BV, GL, DNV,LR,RINA etc.

6. Application: for tug, anchor-handling and supply vessels

Basic Parameters for Your Reference

Shark Jaw Model

Towing Pin Model

Bollard Pull(ton)

Holding Capacity(ton)

Power Required(kw)

SJ-100

TP-100

40

100

15

SJ-200

TP-200

60

200

22

SJ-300

TP-300

85

300

22

SJ-400

TP-400

120

400

30

SJ-500

TP-500

150

500

30

SJ-700

TP-700

200

700

37

Shark Jaw with Hydraulic Pump Station

Shark Jaw

Shark Jaw with Hydraulic Pump Station

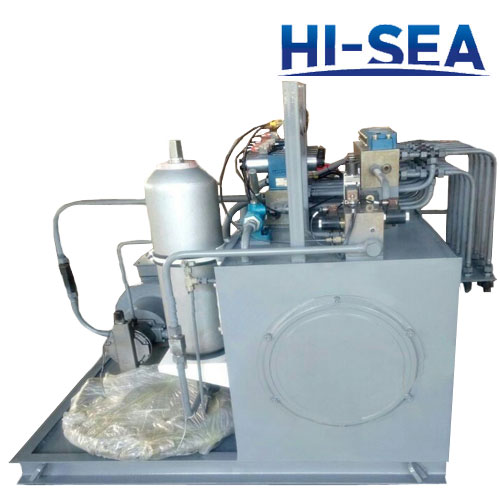

Hydraulic Pump Station
