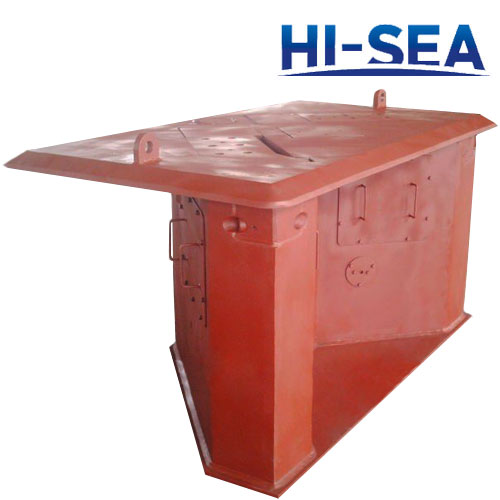

Triplex Shark Jaw
Shark jaws are mainly divided into two types: fork type shark jaw and triplex shark jaw. They are used to clamp the steel wires or anchor chains tightly and withstand the load of the detent.
Features of Triplex Shark Jaw
1. Having two separately retractable claws;
2. Applicable to anchor chains or steel wires;
3. The jaws falls to the same level with the deck;
4. Easy to disassemble the shackles;
5. Local or wheelhouse remote control panel;
6. Quick release system;
7. Electric/hydraulic drive;
8. Available accessories: hydraulic pump station, electrical box,control panel etc.
Specification
1. S.W.L: 80~700tons
2. Working Power: 22KW;
3. Working Pressure:18MPa;
4. Chain Size: 40~114mm
5. Chain Breaking Load: 2940KN;
6. Wire Size: 15~100mm;
7. Surface: Smoothened with no burs or sharp edges;
8. Color: red, blue,gray or any other as you require;
9. Certificate:CCS, ABS,BV, GL, DNV,LR,RINA etc.
10. Application: for tug, anchor-handling and supply vessels
Basic Technical Parameters for Your Reference
|
Shark Jaw Model |
Towing Pin Model |
Bollard Pull(ton) |
Holding Capacity(ton) |
Power Required(kw) |
|
SJ-100 |
TP-100 |
40 |
100 |
15 |
|
SJ-200 |
TP-200 |
60 |
200 |
22 |
|
SJ-300 |
TP-300 |
85 |
300 |
22 |
|
SJ-400 |
TP-400 |
120 |
400 |
30 |
|
SJ-500 |
TP-500 |
150 |
500 |
30 |
|
SJ-700 |
TP-700 |
200 |
700 |
37 |
