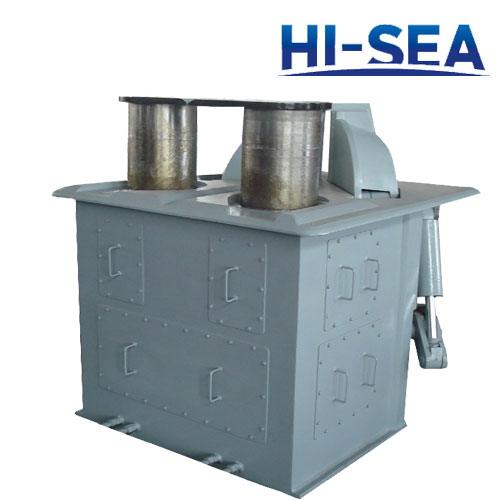

Shark Jaw and Towing Pin


Shark Jaw and Towing Pin

Shark jaw and towing pin are two parts of shark jaw device. Shark jawĄŻs main function is to clamp the anchor chains or wire ropes tightly to avoid sliding. Towing pin is used to block chain or wire rope, having guide function during the anchor handling and towing operations.

Features

1. Hydraulic-driven;

2. Remote-controlled operations;

3. Emergency release system;

4. Jaws suitable for anchor chains and wire ropes;

5. Jaws rise during the operation, flush with the deck when not in operation;

6. Replaceable jaw inserts for different chain sizes

7. Other accessories: hydraulic pump station, electrical box,control panel etc.

8. Provide third party certification: CCS, ABS,BV, GL, DNV,LR,RINA etc.

Performance Parameters of Common Shark Jaws

S.W.L (T)

200

300

500

800

Max. Wire Dia.(mm)

85

90

102

140

Max. Height on Deck(mm)

500

500

440

500

Performance Parameters of Common Shark Jaws

S.W.L (T)

200

300

500

800

Max. Wire Dia.(mm)

600

700

800

800

Max. Height on Deck(mm)

300

300

350

450

Shark Jaw and Towing Pin

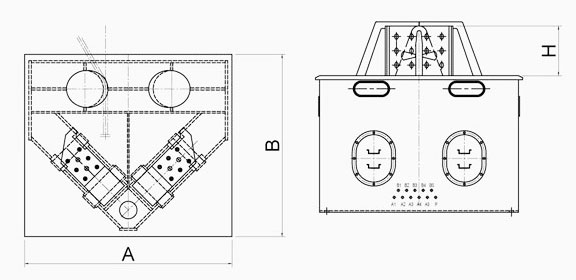

Planform of Shark Jaw and Towing Pin

Technical Parameters for Reference

Type

Max. Chain Size(mm)

Max. Wire Size(mm)

SWL(Ton)

Dimension(mm)

A

B

H

SJ-80

40

45

80

1600

1500

400

SJ-100

54

52

100

1920

1700

420

SJ-200

78

72

200

2200

2080

630

SJ-350

105

96

350

2750

2400

650

SJ-400

114

110

400

3400

2620

700

Shark Jaw and Towing Pin

Marine Shark Jaws and Towing Pins
