Marine Bronze Air Pressure Relief Valve CB/T3656-1994

Marine Bronze Air Pressure Relief Valve CB/T3656-1994:

1.Design standard:CB/T3656-1994.

2.End standard:CB56-80.

3.End type:Thread.

4.DN:15/20mm-25/32mm.

5.Main material:

6.Application:Air piping.

7.Function:Such valves are used for pressure reducing.

8.Fundamental dimensions of Marine Bronze Air Pressure Relief Valve CB/T3656-1994:

DN/mm		Thread connection dimension		Height	Structure length
DN1	DN2	M1/mm	M2/mm	H/mm	L /mm
15	20	M36x2	M39x2	312	140
20	25	M39x2	M48x2	390	229
25	32	M48x2	M56x2	390	229

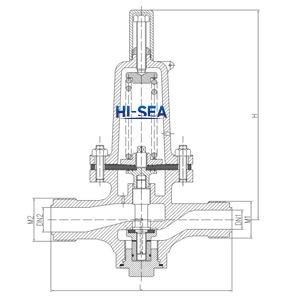

9.Drawing of Marine Bronze Air Pressure Relief Valve CB/T3656-1994:

Marine Bronze Air Pressure Relief Valve CB/T3656-1994

10.Certification available:

Marine Bronze Air Pressure Relief Valve CB/T3656-1994
