Marine Sight Glass CB/T422-1993 Type T/TS

[Search Related Products]

Marine Sight Glass CB/T422-1993 Type T/TS

Marine Sight Glass CB/T422-1993 Type T/TS:

1.Design standard:CB/T422-1993.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.1Mpa.

5.DN:25mm-200mm.

6.Main material:

  • Body:HT200;
  • Transparent board:Common or boron-silicon glass;
  • Transparent pipe:Plexiglass.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Fundamental dimensions of Marine Sight Glass CB/T422-1993 Type T/TS:

Chart 1 Fundamental dimensions of type T:

DN

Structure dimension

Flange connection dimension

Bolt

Weight

mm

H/mm

H1/mm

d/mm

d1/mm

¦Ä/mm

D/mm

D1/mm

D2/mm

d0/mm

b/mm

n

Th.

kg

25

90

20

37

20.5

4

105

73

56

13

14

4

M12

1.42

32

100

22

46

27

4.5

115

83

64

15

6

M14

2.34

40

100

22

51

35

4.5

125

93

74

15

16

2.46

50

115

22

60

45

5

135

103

84

2.68

65

160

54

83

53

6

155

123

104

15

4.91

80

180

60

97

66

6.5

170

138

118

8

8.06

100

210

65

115

85

7.5

190

158

138

10.02

125

245

65

140

110

10

215

183

164

10

13.80

150

310

95

168

128

11

240

208

190

16

12

21.06

200

380

110

210

175

13

295

264

247

33.20

Chart 2 Fundamental dimensions of type TS:

DN

Structure dimension

Flange connection dimension

Bolt

Weight

mm

H/mm

H1/mm

d/mm

d1/mm

¦Ä/mm

D/mm

D1/mm

D2/mm

d0 /MM

b/mm

N

Th.

kg

25

90

20

37

20.5

4

100

75

60

11

14

4

M10

1.65

32

100

22

46

27

4.5

120

90

70

14

16

M12

2.65

40

100

22

51

35

4.5

130

100

80

2.78

50

115

22

60

45

5

140

110

90

3.10

65

160

54

83

53

6

160

130

110

5.52

80

180

60

97

66

6.5

190

150

128

18

18

M16

8.83

100

210

65

115

85

7.5

210

170

148

11.30

125

245

65

140

110

10

240

200

178

20

8

15.50

150

310

95

168

128

11

265

225

202

23.10

200

380

110

210

175

13

320

280

258

22

35.60

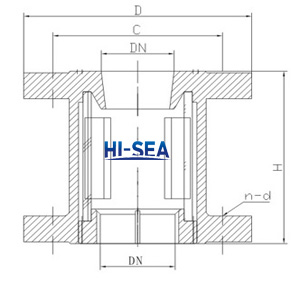

9.Drawing of Marine Sight Glass CB/T422-1993 Type T/TS:

Marine Sight Glass CB/T422-1993 Type T/TS

10.Certificate available:

Marine Sight Glass CB/T422-1993 Type T/TS
