Pressure Gauge Valve

Pressure Gauge Valve

1. Type: A.

2. Manufacture Standard: CB312-1977.

3. End Standard: CB56-80.

3. End Type: Thread.

4. Nominal Pressure: 4.0 Mpa

5. Nominal Diameter: DN6.

6. Main material:

• Body/Bonnet:ZCuSn16Si4;
• Seat:ZCuSn16Si4;
• Stem:2Cr13;
• Disc:QAl9-2.

7. Application:Water,air,oil and steam piping.

8. Specification:

Type	PN (Mpa)	DN (mm)	Weight (kg)
A	4.0	6	0.22

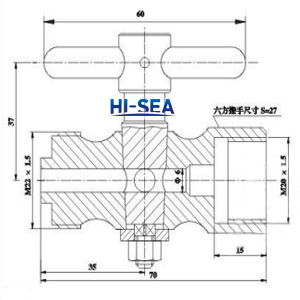

Drawing of Pressure Gauge Valve:

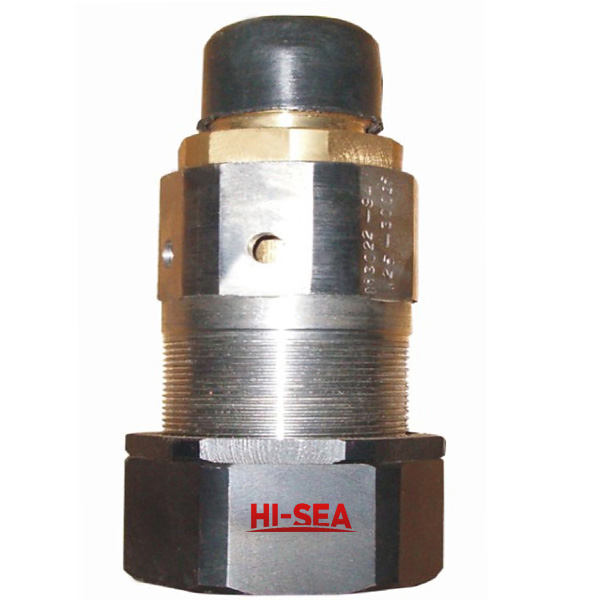

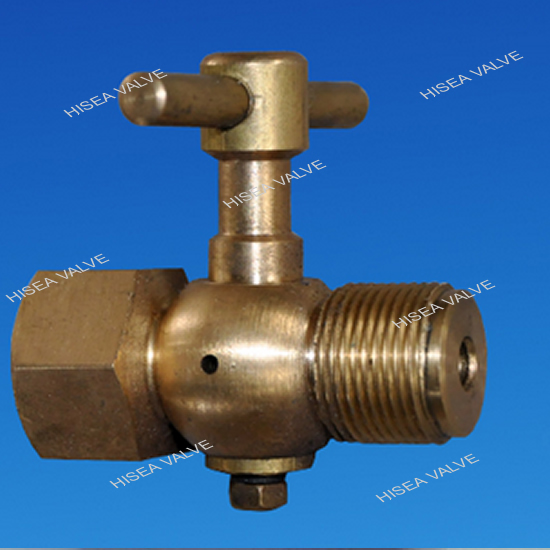

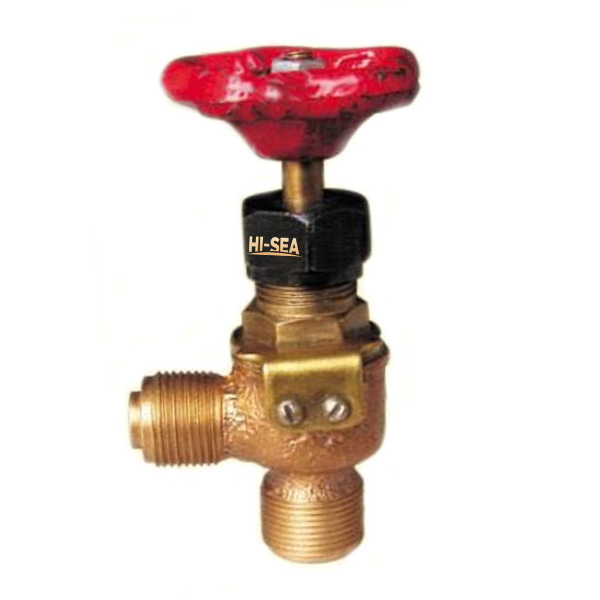

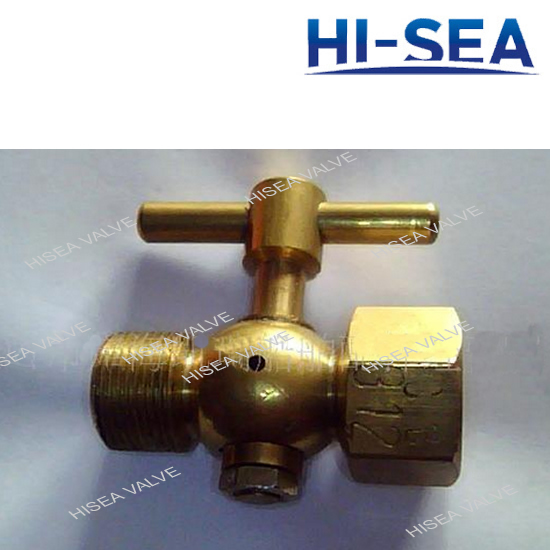

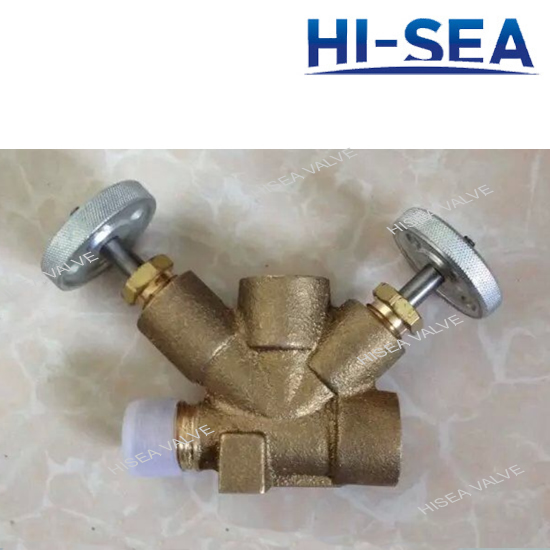

9. Picture of Pressure Gauge Valve:
