Marine Bronze Water Pressure Reducing Valve CB/T624-1995

Marine Bronze Water Pressure Reducing Valve CB/T624-1995:

1.Design standard:CB/T624-1995.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:

5.DN:32mm-80mm.

6.Main material:

7.Application:Sea water piping and fresh water piping.

8.Function:Such valves are used for pressure reducing.

9.Fundamental dimensions of Marine Bronze Water Pressure Reducing Valve CB/T624-1995:

DN	Inlet flange connection dimension				Outlet flange connection dimension				Height	Structure length
DN	D1/mm	C1/mm	n1	d1/mm	D2/mm	C2/mm	n2	d2/mm	H/mm	L/mm
32	115	83	6	15	115	83	6	15	320	190
40	125	93	6	15	125	93	6	15	325	200
50	135	103	6	15	135	103	6	15	370	210
65	170	132	8	17	155	123	6	15	420	240
80	185	147	8	17	170	138	8	15	465	260

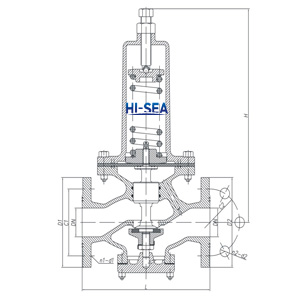

10.Drawing of Marine Bronze Water Pressure Reducing Valve CB/T624-1995:

11.Certificate available:
