Marine Cast Bronze Gate Valve CB/T467-1995

[Search Related Products]

Marine Cast Bronze Gate Valve CB/T467-1995

Marine Cast Bronze Gate Valve CB/T467-1995:

1.Design standard:CB/T467-1995.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.25/0.4/0.6Mpa.

5.DN:40mm-500mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BS;
  • Disc:BC6.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Cast Bronze Gate Valve CB/T467-1995:

Chart 1 Fundamental dimensions of type A:

PN

DN

Structure Dimension

Flange

Bont

Thickness

Stem

Hand
wheel

Lift
Range

Weight

(MPa)

(mm)

L「

H「

D

Di

D2

do

b

n

Th

δ

d

Do

m

(kg)

0.6

40

170

330

125

93

74

15

13

6

M14

6

Tr20 x 8(P4)LH

14

160

48

15

50

190

340

135

103

84

15

16

6

M14

8

Tr20 x 8(P4)LH

14

180

60

20

65

200

372

155

123

104

15

15

6

M14

9

Tr20 x 8(P4)LH

14

180

75

24

80

220

430

170

138

1 18

15

15

8

M14

9

Tr24 x 10(P5)LH

17

200

92

33

100

220

460

190

158

138

15

15

8

M14

10

Tr24 x 10(P5)LH

17

200

112

40

125

242

528

215

183

164

15

15

10

M14

10

Tr26 x 10(P5)LH

19

225

138

61

150

248

566

240

208

190

15

16

12

M14

11

Tr26 x 10(P5)LH

19

225

165

70

0.4

175

268

630

270

238

221

15

16

12

M14

11

Tr28 x 10(P5)LH

22

250

190

85

200

278

685

295

264

247

15

16

12

M14

11

Tr28 x 10(P5)LH

22

250

215

100

250

310

755

365

327

306

17

18

14

M16

13

Tr30 x 10(P5)LH

24

280

265

153

300

345

835

430

386

360

21

19

14

M20

13

Tr30 x 10(P5)LH

24

280

315

199

Chart 2 Fundamental dimensions of type AS:

PN

DN

Structure Dimension

Flange

Bont

Thickness

Stem

Hand
wheel

Lift
Range

Weight

(MPa)

(mm)

L「

H「

D

Di

D2

do

b

n

Th

δ

d

Do

m

(kg)

0.6

40

165

330

130

100

80

14

16

4

M12

6

Tr20 x 8(P4)LH

14

160

48

17

50

178

340

140

110

90

14

16

4

M12

8

Tr20 x 8(P4)LH

4

180

60

20.3

65

190

372

160

130

1 10

14

16

4

M12

9

Tr20 x 8(P4)LH

14

180

75

24.5

80

203

430

190

150

128

18

18

4

M16

9

Tr24 x 10(P5)LH

17

200

92

33.8

100

229

460

210

170

148

18

18

4

M16

10

Tr24 x 10(P5)LH

17

200

112

41.2

125

254

528

240

200

178

18

20

8

M16

10

Tr26 x 10(P5)LH

19

225

138

62.1

150

267

566

265

225

202

18

20

8

M16

11

Tr26 x 10(P5)LH

19

225

165

71.6

0.4

175

292

630

295

255

232

18

22

8

M16

11

Tr28 x 10(P5)LH

22

250

190

86.4

200

292

685

320

280

258

18

22

8

M16

11

Tr28 x 10(P5)LH

22

250

215

101.8

250

330

755

375

335

312

18

24

12

M16

13

Tr30 x 12(P6)LH

24

280

265

155.1

300

356

835

440

395

365

22

24

12

M20

13

Tr30 x 12(P6)LH

24

280

315

201.2

0.25

350

381

1050

490

445

415

22

26

12

M20

14

Tr36 x 12(P6)LH

27

320

365

298.3

400

406

1145

540

495

465

22

28

16

M20

15

Tr36 x 12(P6)LH

27

360

418

372.1

450

432

1330

595

550

520

22

28

16

M20

16

Tr40 x 12(P6)LH

32

400

468

560.0

500

457

1420

645

600

570

22

30

20

M20

16

Tr40 x 12(P6)LH

32

450

518

627.4

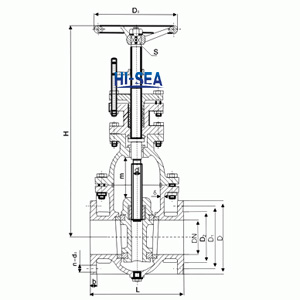

10.Drawing of Marine Cast Bronze Gate Valve CB/T467-1995:

Marine Cast Bronze Gate Valve CB/T467-1995

11.Certificate available:

Marine Cast Bronze Gate Valve CB/T467-1995
