Portable foam fire extinguisher
[Search Related Products]
Portable foam fire extinguisher
Foam fire extinguishers work by covering a burning flammable liquid with a blanket of foam, cutting off the fire¡¯s air supply and preventing the release of flammable vapors. Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics &rubber Class B Flammable liquids.
Our firm can supply 1L-9L Portable foam fire extinguisher. Our products are different from the general suppliers¡¯ and our products are always assumed to have the edge on quality.
Product detail
Material: Stainless steel
Standard: CE standard
Foam fire extinguisher size: 1L,2L,3L,4L,6L,9L,12L
Foam fire extinguisher weight: 1kg, 2kg, 3kg, 4kg, 6kg, 9kg, 12kg
Foam fire extinguisher color: Red or the color you want
Range Of Discharge 6-8m
Duration Of Discharge 21-23 sec.
Portable foam fire extinguisher parameter
Capacity |
1L |
2L |
3L |
4L |
6L |
9L |
12L |
Out-Dia.(mm) |
85 |
110 |
130 |
140 |
160 |
180 |
180 |
Volume (L) |
1.29 |
2.4 |
3.9 |
5.4 |
7.8 |
10.5 |
13.88 |
Cylinder-length (mm) |
270 |
302 |
346 |
410 |
450 |
485 |
621 |
Cylinder Weight (kg) |
0.66 |
1.17 |
1.69 |
2.1 |
2.95 |
3.6 |
4.4 |
Extinguisher weight(kg) |
2.2 |
3.8 |
5 |
6.7 |
9.5 |
14 |
18 |
Filling weight (kg) |
1 |
2 |
3 |
4 |
6 |
9 |
12 |
Working pressure (bar) |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
Test pressure (bar) |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
Temperature Range |
0~60 |
0~60 |
0~60 |
0~60 |
0~60 |
0~60 |
0~60 |
Min Wall-thickness |
0.78 |
1.07 |
1.13 |
1.13 |
1.23 |
1.3 |
1.3 |
Material |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
Fire rate |
5A21B |
8A34B |
13A70B |
13A89B |
27A144B |
34A183B |
43A233B |

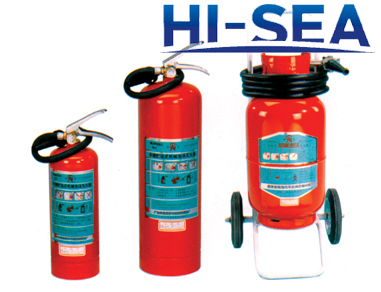

photo of Portable foam fire extinguisher
