AFFF 3 percent foam fire extinguisher
[Search Related Products]
AFFF 3% foam fire extinguisher
Aqueous film-forming foam (AFFF), this synthetic foam has a low viscosity and spreads rapidly across the surface of most hydrocarbon fuels. A water film forms beneath the foam, which cools the liquid fuel, which stops the formation of flammable vapors. This provides dramatic fire knockdown, an important factor in crash rescue fire fighting. To 2010, the foam has achieved a 97% degradability rating; the foam is used at 3% both on hydrocarbon and polar solvent fires.
Product detail:
Place of Origin: Chongqing China (Mainland)
Brand Name: HI-SEA
Material: carbon steel /Stainless Steel
Extinguisher Color: red or as clients require
Approval: CE and ISO9001
Temperature Range : 0ˇăC~60ˇăC
Test Pressure (bar): 27
Agent: 3% afff foam
Service: OEM/ ODM
AFFF 3% foam fire extinguisher parameter
Capacity |
4L |
6L |
9L |
Out-Dia.(mm) |
140 |
160 |
180 |
Volume (L) |
5.4 |
7.8 |
10.5 |
Cylinder-length (mm) |
410 |
450 |
485 |
Cylinder Weight (kg) |
2.1 |
2.95 |
3.6 |
Extinguisher Weight (kg) |
6.7 |
9.5 |
14 |
Filling Weight (L) |
4 |
6 |
9 |
Working Pressure (bar) |
14 |
14 |
14 |
Min Wall-thickness |
1.13 |
1.23 |
1.3 |
Fire Rate: |
13A 89B |
27A 144B |
34A 183B |
Packing Size (mm) |
150x160x440 |
170x180x510 |
190x200x600 |
Qty. / ctn (pcs) |
1 |
1 |
1 |
Qty. / 1x20'ft (pcs) |
2600 |
1800 |
1200 |

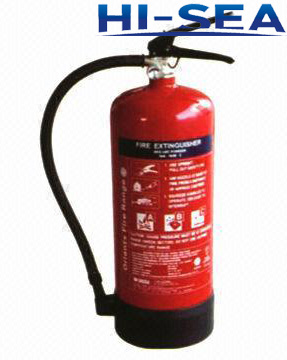

photo of AFFF 3% foam fire extinguisher
