Foam fire extinguisher
The foam was a combination of the products of the chemical reactions, when the solutions were mixed, usually by inverting the unit; the two liquids reacted to create a frothy foam, and carbon dioxide gas. The gas expelled the foam in the form of a jet.
Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics & rubber Class B Flammable liquids.
There are two main types of Foam fire extinguisher: portable type and wheeled type. Our firm can offer 1-12L portable Foam fire extinguisher, and 25kg, 50kg, 100kg wheeled foam fire extinguisher.
Portable foam fire extinguisher parameter
Capacity |
1L |
2L |
3L |
4L |
6L |
9L |
12L |
Out-Dia.(mm) |
85 |
110 |
130 |
140 |
160 |
180 |
180 |
Volume (L) |
1.29 |
2.4 |
3.9 |
5.4 |
7.8 |
10.5 |
13.88 |
Cylinder-length (mm) |
270 |
302 |
346 |
410 |
450 |
485 |
621 |
Cylinder Weight (kg) |
0.66 |
1.17 |
1.69 |
2.1 |
2.95 |
3.6 |
4.4 |
Extinguisher weight(kg) |
2.2 |
3.8 |
5 |
6.7 |
9.5 |
14 |
18 |
Filling weight (kg) |
1 |
2 |
3 |
4 |
6 |
9 |
12 |
Working pressure (bar) |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
Test pressure (bar) |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
Temperature Range |
0~60 |
0~60 |
0~60 |
0~60 |
0~60 |
0~60 |
0~60 |
Min Wall-thickness |
0.78 |
1.07 |
1.13 |
1.13 |
1.23 |
1.3 |
1.3 |
Material |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
Fire rate |
5A21B |
8A34B |
13A70B |
13A89B |
27A144B |
34A183B |
43A233B |

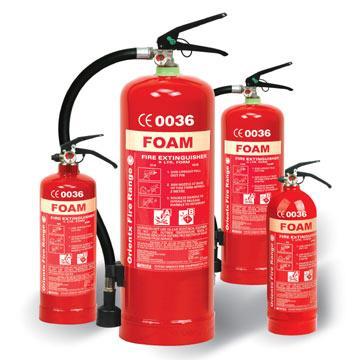

photo of portable foam fire extinguisher
Wheeled foam fire extinguisher parameter
Capacity |
25L |
50L |
100L |
Out-Dia.(mm) |
270 |
320 |
406 |
Cylinder Length(mm) |
625 |
875 |
1100 |
Volume(L) |
30 |
59 |
124 |
Full Weight(kg) |
60 |
95 |
150 |
Temperature Range(ˇăC) |
0~+55 |
0~+55 |
5ˇăC~+60ˇăC |
Working pressure(bar) |
15 |
15 |
15 |
Test pressure(bar) |
35 |
35 |
35 |
Fire class |
55A 1B |
55A 11BC |
55A 11BC |

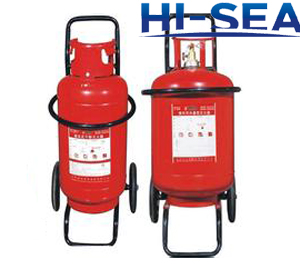

photo of wheeled foam fire extinguisher
