Stored Pressure foam fire extinguisher
Stored Pressure foam fire extinguishers are very common fire extinguisher. Depending on the agent used, different propellants are used. The water and foam extinguishers typically use air as propellants.
Product detail:
Certificate: UL, CE, ISO9001
Color: Red or other customized color
Name: store pressure foam fire extinguisher
Nozzle: PVC Rubber
Handle: Tin Cylinder material: CK45
Valve material: Brass
Temperature range: -30¡æ~+55¡æ
Standard: American, Europe, Asia, Middle East
Special Service: OEM, Cylinder Size suit your requires
Stored Pressure foam fire extinguisher
Type |
1.3kg |
2kg (A) |
2.3kg(A) |
5kg (B) |
6kg (A) |
9kg (A) |
Out Diameter (mm) |
105 |
105 |
105 |
136 |
136 |
154 |
Height(mm) |
335 |
450 |
520 |
585 |
760 |
870 |
Volume (L) |
2+0.21 |
3+0.30 |
3.5+0.35 |
6.67+0.67 |
9.0+0.9 |
13.5+1.35 |
Min.Thickness(mm) |
2.7 |
2.25 |
2.25 |
3.4 |
2.6 |
3 |
Material |
34CrMo4 |
34CrMo4 |
34CrMo4 |
34CrMo4 |
34CrMo4 |
34CrMo4 |
Working Pressure (Bar) |
167~174 |
167~174 |
167~174 |
167~174 |
167~174 |
167~174 |
Test Pressure(Bar) |
250 |
250 |
250 |
250 |
250 |
250 |
Fire rating |
21B |
34B |
34B |
89B |
89B |
144B |
Extinguisher weight (kg) |
4.15 |
6.05 |
7 |
14.1 |
16.7 |
22.8 |

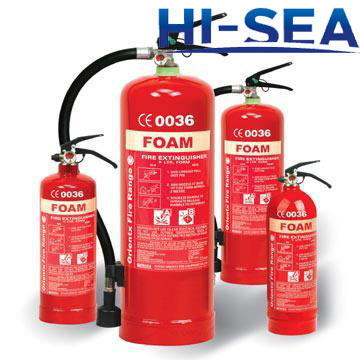

photo of Stored Pressure foam fire extinguisher
