Wheeled Foam Fire Extinguisher

[Search Related Products]

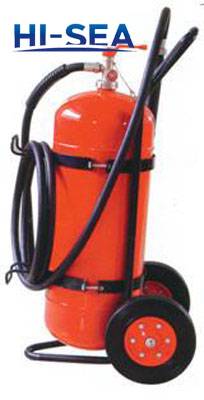

Wheeled Foam Fire Extinguisher

Trolley foam fire extinguisher/Wheeled Foam Fire Extinguisher

Parts description: welded cylinder, valve, with pull pin tamper seal, siphon tube gauge -240-350psi1, cart rack, hose and horn assembly w/discharge gun, two wheels are applicator good for a/b/c fire.

Wheeled Foam fire extinguishers work by covering a burning flammable liquid with a blanket of foam, cutting off the fire¡¯s air supply and preventing the release of flammable vapors. Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics &rubber Class B Flammable liquids

Product detail:

Size: 25L, 45L, 50L, 100L

Foam AFFF : A. 3% B. 6%

Bottom Shape: Trolley

Thickness: 2.3mm Painting

Color: Red or the color you want

Driving Gas: Nitrogen gas

Temperature range (¡ãC): 5~+55

Material: Carbon Steel/ Alloy Steel

Wheeled Foam Fire Extinguisher parameter

Capacity

25L

50L

100L

Out-Dia.(mm)

270

320

406

Cylinder Length(mm)

625

875

1100

Volume(L)

30

59

124

Full Weight(kg)

60

95

150

Temperature Range(¡ãC)

0~+55

0~+55

5¡ãC~+60¡ãC

Working pressure(bar)

15

15

15

Test pressure(bar)

35

35

35

Fire class

55A 1B

55A 11BC

55A 11BC
