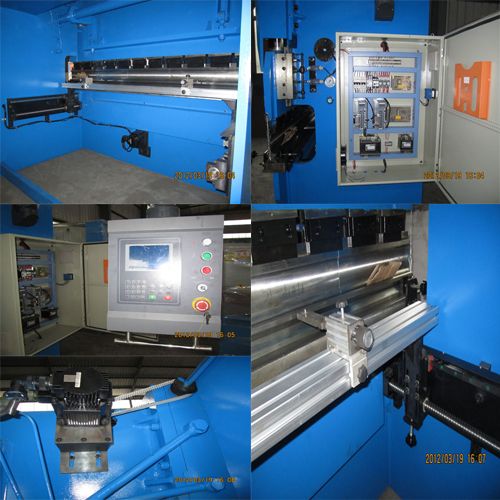

2-sets-tandem Hydraulic Sheet Metal Bending Machine
WC67K series adopt the same specifications urn or three cylinder host, equipped with 2-sets-tandem synchronizing unit;
2-sets-tandem bending machine can process expertise workpiece, especially suitable for urban construction, highway barrier, road light pole, electric power bar etc, specialty workpiece processing manufacturing;
Two machines can also be used alone, improve the production efficiency;
Special requirments can be specially designed manufacturing.
Main Technical Data
Specification | Nominal Pressure (kn) | Length of Working Table (mm) | The Distance between Column (mm) | The Depth of Throat (mm) | Slide Stroke (mm) | The Max. Open Height between Table and Sliding Bloke (mm) | Motor Power (kw) | Dimension (mm) |
2-100/3200 | 2*1000 | 2*3200 | 2600 | 320 | 150 | 415 | 2*7.5 | 3275*1585*2670 |
2-160/3200 | 2*1600 | 2*3200 | 2550 | 320 | 200 | 445 | 2*11 | 3300*1550*2600 |
2-160/3600 | 2*1600 | 2*3600 | 2950 | 320 | 200 | 445 | 2*11 | 3700*1600*2700 |
2-160/4000 | 2*1600 | 2*4000 | 3350 | 320 | 200 | 445 | 2*11 | 4100*1600*2700 |
2-160/5000 | 2*1600 | 2*5000 | 4100 | 500 | 200 | 445 | 2*11 | 5250*1650*2770 |
2-160/6000 | 2*1600 | 2*6000 | 5100 | 500 | 200 | 445 | 2*11 | 6250*1670*3100 |
2-250/3200 | 2*2500 | 2*3200 | 2700 | 400 | 250 | 515 | 2*15 | 3275*1900*3100 |
2-250/4000 | 2*2500 | 2*4000 | 3300 | 400 | 250 | 515 | 2*15 | 4100*1900*3140 |
2-250/5000 | 2*2500 | 2*5000 | 4100 | 400 | 250 | 515 | 2*15 | 5250*2040*3200 |
2-320/4000 | 2*3200 | 2*4000 | 3300 | 400 | 250 | 515 | 2*15 | 4100*2100*3450 |
2-320/5000 | 2*3200 | 2*5000 | 4300 | 400 | 250 | 530 | 2*15 | 5060*2380*3500 |
2-320/6000 | 2*3200 | 2*6000 | 5300 | 400 | 200 | 530 | 2*22 | 6060*2380*3500 |
2-400/4000 | 2*4000 | 2*4000 | 3100 | 400 | 320 | 590 | 2*22 | 4060*3240*3540 |
2-400/5000 | 2*4000 | 2*5000 | 4210 | 400 | 320 | 590 | 2*37 | 5060*2100*3540 |
2-500/4000 | 2*5000 | 2*4000 | 3100 | 400 | 320 | 650 | 2*37 | 4090*2400*4950 |
2-500/5000 | 2*5000 | 2*5000 | 4100 | 400 | 320 | 650 | 2*37 | 5090*2450*5500 |
2-500/6000 | 2*5000 | 2*6000 | 5100 | 400 | 320 | 650 | 2*37 | 6090*2550*5500 |
2-630/5000 | 2*6300 | 2*5000 | 4100 | 400 | 320 | 700 | 2*45 | 5100*3350*5550 |
2-630/6000 | 2*6300 | 2*6000 | 5100 | 400 | 320 | 700 | 2*45 | 6100*3430*5650 |
2-800/8000 | 2*8000 | 2*8000 | 6700 | 400 | 100 | 750 | 2*55 | 8100*3800*6050 |
