Hydraulic Bending Machine

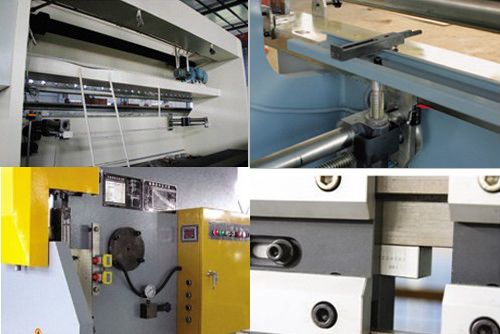

1. Whole steel welded structure, with VSR eliminate internal stress, with high strength and good rigidity.
2. Hydraulic double cylinder on the transmission, mechanical block, twisting axis synchronization, and reliable operation and high precision.
3. After the block away and slide stroke with electric adjustment and manual fine-tuning mode, and with a digital display device, easy to use shortcuts.
4. On the mold with a deflection compensation device, more than 250 tons and the length of 4000mm tool deflection compensation under the body can use.
Main Parameters
Model | Nominal Pressure (kn) | Length of Working Table (mm) | The Depth of Throat (mm) | Ram Stroke(mm) | Number of Stroke (m/min-1£© | Motor Power (kw) |
WC67Y/K-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
WC67Y/K-40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
WC67Y/K-50/2500 | 500 | 2500 | 200 | 100 | 11 | 5.5 |
WC67Y/K-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
WC67Y/K-63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
WC67Y/K-80/2500 | 800 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/2500 | 1000 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/4000 | 1000 | 4000 | 400 | 150 | 8 | 7.5 |
WC67Y/K-125/2500 | 1250 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-125/4000 | 1250 | 4000 | 400 | 150 | 8 | 7.5 |
WC67Y/K-160/3200 | 1600 | 3200 | 400 | 180 | 8 | 11 |
WC67Y/K-160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
WC67Y/K-160/5000 | 1600 | 5000 | 400 | 180 | 7 | 11 |
WC67Y/K-160/6000 | 1600 | 6000 | 400 | 200 | 7 | 15 |
WC67Y/K-200/3200 | 2000 | 3200 | 400 | 200 | 7 | 15 |
WC67Y/K-200/4000 | 2000 | 4000 | 400 | 200 | 7 | 15 |
WC67Y/K-200/6000 | 2000 | 6000 | 400 | 200 | 7 | 15 |
WC67Y/K-250/3200 | 2500 | 3200 | 400 | 200 | 7 | 18.5 |
WC67Y/K-250/4000 | 2500 | 4000 | 400 | 200 | 7 | 18.5 |
WC67Y/K-250/6000 | 2500 | 6000 | 400 | 250 | 7 | 18.5 |
WC67Y/K-300/3200 | 3000 | 3200 | 400 | 250 | 7 | 22 |
WC67Y/K-300/4000 | 3000 | 4000 | 400 | 250 | 7 | 22 |
WC67Y/K-300/6000 | 3000 | 6000 | 400 | 250 | 7 | 30 |
WC67Y/K-300/7000 | 3000 | 7000 | 400 | 250 | 7 | 30 |
WC67Y/K-400/6000 | 4000 | 6000 | 400 | 250 | 7 | 30 |
WC67Y/K-500/6000 | 5000 | 6000 | 400 | 300 | 7 | 37 |
WC67Y/K-600/6000 | 6000 | 6000 | 420 | 300 | 7 | 37 |
