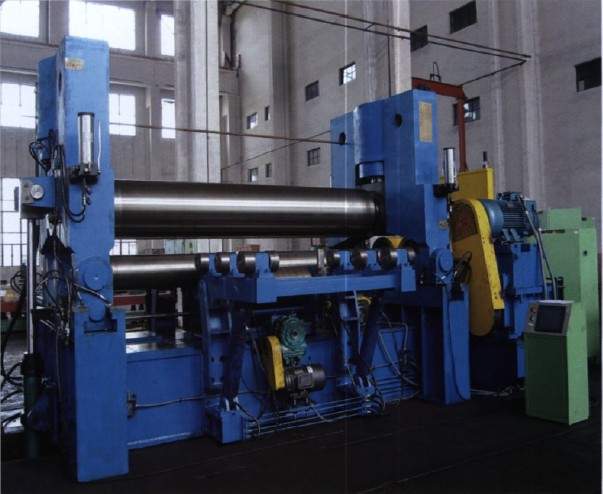

Large-size Upper Roller Plate Rolling Machine

Large-size Upper Roller Universal Rolling Machine

W11SNC series upper roller universal plate rolling machine is a cooperative project with the introduction of Kurimoto Ltd's technology in 1995. Its charateristics are:

1) The upper roller is drum It can bend thin or thick plates with high straightees.(national patent)

2) The unique back rolling technology ensures the precision of products without dead bending or other inaccuracies.

3) The plate edge pre-bending is direct pressure, it's enable to control the size and the shape of the remained flat side and achieves high precision edge pre-bending.

4) This machine has a single-part chassis, nd simle foundation, and easy to move.

More Plate Rolling Machines...

Technical parameters

Model	Max. Plate Thickness(mm)	Max. Pre-Rolling Thicknes(mm)	Plate Width (mm)	Diameter of Upper Roller(mm)	Main Motor Power(kw)
W11SNC-110*4000	110	90	4,000	940	90
W11SNC-120*3000	120	100	3,000	860	90
W11SNC-120*4000	120	100	4,000	990	110
W11SNC-130*3000	130	110	3,000	960	2*75
W11SNC-160*3000	160	120	3,000	1,080	2*75
W11SNC-160*4000	160	130	4,000	1,260	2*90

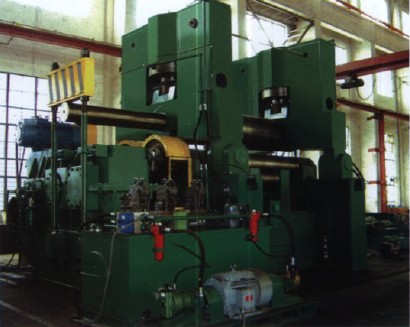

Different Models:

W11STNC-140*4000

W11STNC-180*3200

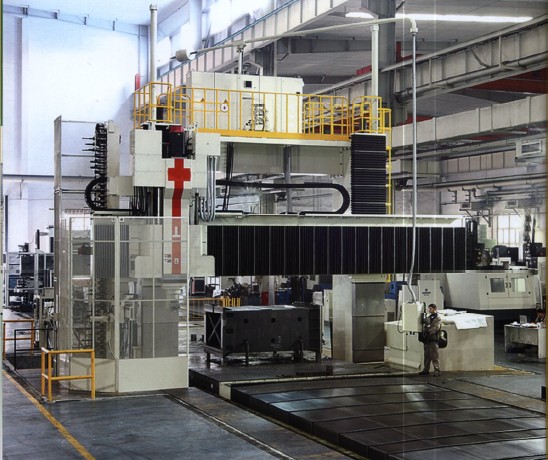

The Working Shop:

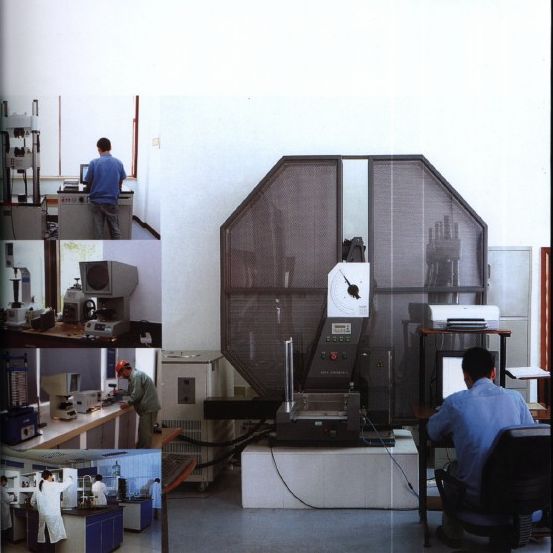

The Test & Inspection:
