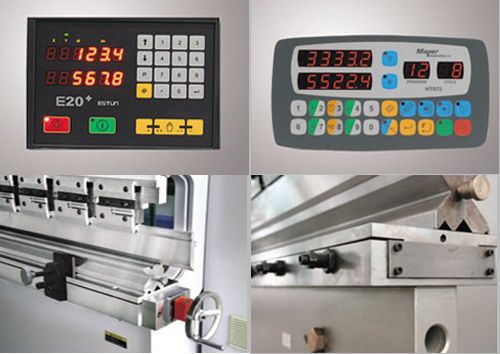

CNC Hydraulic Press Brake Machine

CNC Hydraulic Press Brake Machine

1. The lead plane selects and uses the WC67Y series breaking curved machine up.

2. Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system).

3. Rear material (X), smooth piece route or distance of travel (Y) control equal reason computer autocontrol.

4. Rear material adopt the average silk pole and precise ball two kinds silk poles.

Main Parameters

Model	Nominal Pressure (kn)	Length of Working Table (mm)	The Depth of Throat (mm)	Ram Stroke (mm)	Number of Stroke (m/min-1）	Motor Power (kw)
WC67Y/K-40/2200	400	2200	200	100	11	4
WC67Y/K-40/2500	400	2500	200	100	11	4
WC67Y/K-50/2500	500	2500	200	100	11	5.5
WC67Y/K-63/2500	630	2500	250	100	10	5.5
WC67Y/K-63/3200	630	3200	250	100	10	5.5
WC67Y/K-80/2500	800	2500	320	150	8	7.5
WC67Y/K-80/3200	800	3200	320	150	8	7.5
WC67Y/K-100/2500	1000	2500	320	150	8	7.5
WC67Y/K-100/3200	1000	3200	320	150	8	7.5
WC67Y/K-100/4000	1000	4000	400	150	8	7.5
WC67Y/K-125/2500	1250	2500	320	150	8	7.5
WC67Y/K-125/3200	1250	3200	320	150	8	7.5
WC67Y/K-125/4000	1250	4000	400	150	8	7.5
WC67Y/K-160/3200	1600	3200	400	180	8	11
WC67Y/K-160/4000	1600	4000	400	180	8	11
WC67Y/K-160/5000	1600	5000	400	180	7	11
WC67Y/K-160/6000	1600	6000	400	200	7	15
WC67Y/K-200/3200	2000	3200	400	200	7	15
WC67Y/K-200/4000	2000	4000	400	200	7	15
WC67Y/K-200/6000	2000	6000	400	200	7	15
WC67Y/K-250/3200	2500	3200	400	200	7	18.5
WC67Y/K-250/4000	2500	4000	400	200	7	18.5
WC67Y/K-250/6000	2500	6000	400	250	7	18.5
WC67Y/K-300/3200	3000	3200	400	250	7	22
WC67Y/K-300/4000	3000	4000	400	250	7	22
WC67Y/K-300/6000	3000	6000	400	250	7	30
WC67Y/K-300/7000	3000	7000	400	250	7	30
WC67Y/K-400/6000	4000	6000	400	250	7	30
WC67Y/K-500/6000	5000	6000	400	300	7	37
WC67Y/K-600/6000	6000	6000	420	300	7	37
