Small & Medium Size Upper Roller Plate Rolls
[Search Related Products]

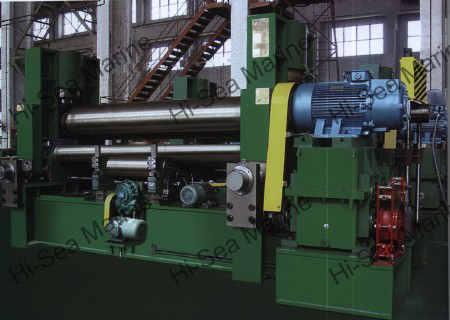

Small & Medium Size Upper Roller Universal Plate Rolling Machine
1) The upper roller is drum-shaped and the lower part of lower roller has a supporting roller for adjustment. It can bend thin or thick plates with highstraughtness.
2) The unique back rolling technology ensures the precision of products without dead bending or other inaccuracies.
3) The plate edge pre-bending is direct pressure, it's enable to control the size and the shape of the remained flat side and achieves high precision edge pre-bending.
4) This machine has a single-part chassis, and simple foundation, and easy to move.
Main Parameters:
Model |
Max. Plate Thickness(mm) |
Max. Pre-rolling Thickness(mm) |
Plate Width(mm) |
Diameter of Upper Roller(mm) |
Main Motor Power(kw) |
W11SNC-40*4000 |
40 |
32 |
4000 |
610 |
45 |
W11SNC-45*3000 |
45 |
40 |
3000 |
590 |
45 |
W11SNC-45*4000 |
45 |
40 |
4000 |
660 |
45 |
W11SNC-50*4000 |
50 |
45 |
4000 |
700 |
55 |
W11SNC-55*3000 |
55 |
45 |
3000 |
620 |
55 |
W11SNC-55*4000 |
55 |
50 |
4000 |
750 |
55 |
W11SNC-60*3000 |
60 |
50 |
3000 |
650 |
55 |
W11SNC-60*4000 |
60 |
55 |
4000 |
780 |
75 |
W11SNC-65*4000 |
65 |
60 |
4000 |
810 |
75 |
W11SNC-70*3000 |
70 |
60 |
3000 |
710 |
75 |
W11SNC-70*4000 |
70 |
65 |
4000 |
820 |
75 |
W11SNC-75*3000 |
75 |
65 |
3000 |
740 |
75 |
W11SNC-80*3000 |
80 |
70 |
3000 |
760 |
75 |
W11SNC-80*4000 |
80 |
75 |
4000 |
860 |
90 |
W11SNC-90*3000 |
90 |
80 |
3000 |
790 |
90 |
W11SNC-100*3000 |
100 |
80 |
3000 |
820 |
90 |
W11SNC-12*2000 |
12 |
10 |
2000 |
250 |
5.5 |
W11SNC-16*2000 |
16 |
12 |
2000 |
255 |
7.5 |
W11SNC16*2500 |
16 |
12 |
2500 |
300 |
11 |
W11SNC-18*3000 |
18 |
14 |
3000 |
350 |
11 |
W11SNC-20*3000 |
20 |
16 |
3000 |
375 |
15 |
W11SNC-25*2500 |
25 |
20 |
2500 |
380 |
15 |
W11SNC-30*2500 |
30 |
25 |
2500 |
410 |
22 |
W11SNC-30*3000 |
30 |
25 |
3000 |
450 |
30 |
W11SNC-32*3000 |
32 |
28 |
3000 |
480 |
30 |
W11SNC-35*2500 |
35 |
30 |
2500 |
460 |
30 |
W11SNC-35*3000 |
35 |
30 |
3000 |
510 |
37 |
W11SNC-40*2500 |
40 |
35 |
2500 |
500 |
37 |
W11SNC-40*3000 |
40 |
35 |
3000 |
540 |
45 |
