225mm White Dredge HDPE Pipe
[Search Related Products]
Description of 225mm Dredge HDPE Pipe
225mm Dredge High Density Polyethylene£¨HDPE£© Pipe is applicable for dredge pipeline.It can be worked with dredging rubber hose and dredge steel pipe.Dredge HDPE pipe is used for transporting mud,slurry ,sand,etc.Dredge HDPE pipe is made from HDPE mixed with anti-UV material by special technology.It has many excellent features,such as high abrasion resistance,corrosion resistance,light weight,etc.Dredge HDPE pipe is lined with steel ring,which ensures both ends deformation in the process of installation and disassembly.Both ends are equipped with loose flanges.Rubber pad is available for flange.For any more information,please contact us directly.
Features of 225mm Dredge HDPE Pipe:
Excellent crack resistance
Flexible metal flange connection
High impact resistance,wear resistance,corrosion resistance
Smooth inner surface,easy for transportation,long life service
Wonderful ability of resisting low temperature,non-toxic
Low water resistance coefficient, small friction resistance
Light weight, one eight weight of steel pipe, easy for installation
Specifications of 225mm Dredge HDPE Pipe:
O.D. of Pipe(mm) |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
Working pressure--PN(MPa) |
|||||
0.6MPa |
0.8MPa |
1.0MPa |
1.25MPa |
1.6MPa |
|
Thickness of Pipe(mm) |
|||||
225 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
(Note:More Dredge HDPE Pipe can be customized according to customers' requirements.)

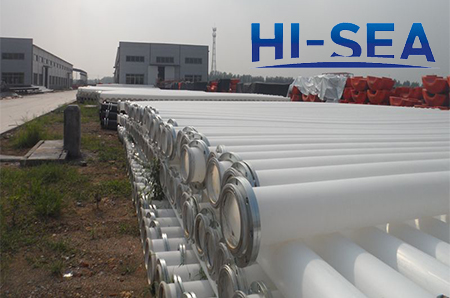

Picture of 225mm White Dredge HDPE Pipe
