Description of Dredge Discharge Hose
Dredge Discharge Hose is used with dredging vessels for transporting slurry and gravels.It is widely used in rivers and lakes,port dredging,etc.Various flange can be available.Steel flange type rubber hose and rubber type rubber hose have long service life.Our dredge discharge hose can be connected with dredge steel pipe and dredge HDPE pipe.It is easy to install.Dredge Armored Discharge Hose is also available.Our dredge discharge hose can be customized according to clients¡¯ special requests.For more information,please feel free to contact us directly.
Structure of Dredge Discharge Hose£º
Inner rubber liner: natural rubber and synthetic rubber
Outer rubber cover: natural rubber and synthetic rubber.
Skeleton layer: high strength rubber dipped chemical fiber and reinforced by spiral metal wire
Features:
Flexibility
Easy to install
Wear-resistant
Bending resistant
Various flange
Longer lifetimes and safe
Wall thickness:18-70mm
Working temperature: -20¡æ to +50¡æ
Specifications:
Inner Diameter |
Working Pressure |
Length |
Pipe Wall Thickness |
|
mm |
Allowable Error |
(MPa) |
(m) |
(mm) |
300 |
¡À2 |
0.4--1.2 |
1~3 |
34-37 |
414 |
¡À2 |
0.4--1.2 |
1~3 |
35-37 |
560 |
¡À2 |
0.4--1.2 |
2~3 |
40-45 |
600 |
¡À2 |
0.4--1.2 |
2~3 |
40-45 |
700 |
¡À2 |
0.8-1.5 |
2~3 |
40-45 |
800 |
¡À2 |
1.2-1.5 |
2~3 |
50-52 |
900 |
¡À2 |
1.2-1.5 |
2~3 |
55-58 |
1000 |
¡À2 |
2.0-2.5 |
3~5 |
75 |
(Note:The specifications are for reference.More designs can be customized according to customers' requirments.)

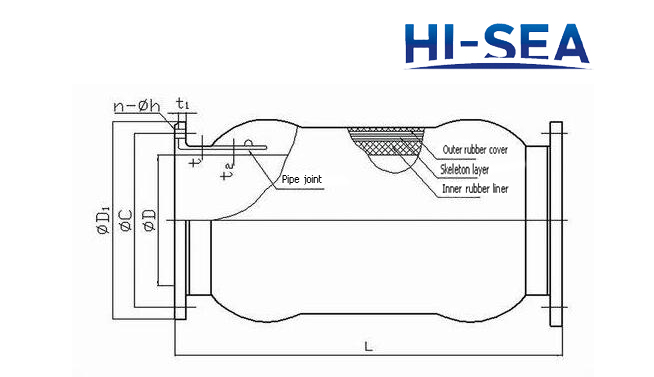

Drawing of Dredge Discharge Hose

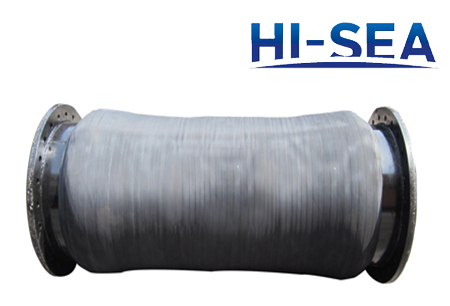

Dredge Discharge Hose with Steel Flange

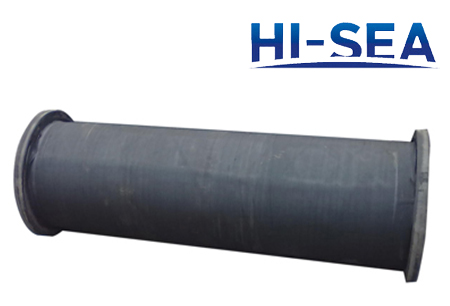

Dredge Discharge Hose with Sanwich Flange
