Dredge Suction Hose

Description of Dredge Suction Hose

Dredge Suction Hose is used for transporting slurry and gravels,etc.It is available for dredging ships.Its design has high bending capability.Dredge suction hose can bear a negative working pressure and resist abrasion.It has flexibility.We provide Steel flange type suction rubber hose and Rubber flange type suction rubber hose.Dredge suction hose consists of internal rubber cover,external rubber cover and skeleton layer.They use different materials,such as cotton fire,natural rubber,etc.

Our dredge suction rubber hose can be produced according to clients¡¯ special requirements.For any more question,please feel free to contact us directly.

Features:

Easy to install

Wall thickness:31-58mm

Working temperature: -20 to +50 ¡æ

Flexible, anti-wave, wear-resistance,safe

Specifications:

Inner Diameter

Working Pressure

Length

Pipe Wall Thickness

mm

Allowable Error

(MPa)

(m)

(mm)

250

¡À2

60mm Hg

1~3

31-32

300

¡À2

1~3

34-37

414

¡À2

1~3

35-37

560

¡À3

2~3

40-45

600

¡À3

2~3

40-45

700

¡À3

2~3

40-45

800

¡À4

2~3

50-52

900

¡À4

2~3

55-58

£¨Note:The specifications are for reference,the dredge suction rubber hose can be customized according to customers' requests.£©Dredge Suction Hose

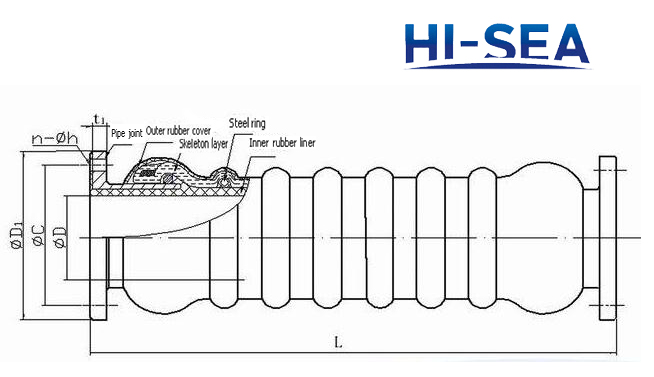

Drawing of Dredge Suction Hose

Dredge Suction Hose

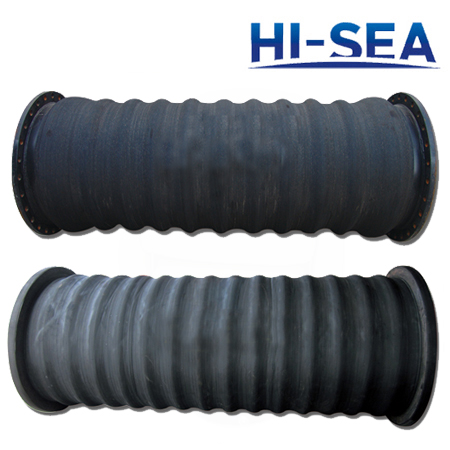

Steel FlangeType and Rubber Flange Type Dredge Suction Hose

Dredge Suction Hose

Dredge Suction Hose

Dredge Suction Hose

Dredge Suction Hose
