280mm Dredge HDPE Pipe
[Search Related Products]
Description of 280mm Dredge HDPE Pipe
280mm Dredge High Density Polyethylene£¨HDPE£© Pipe is applicable for dredge pipeline.It can be worked with dredging rubber hose and dredge steel pipe.Dredge HDPE pipe is made from HDPE mixed with anti-UV material by special technology.Dredge HDPE pipe is used for transporting mud,slurry ,sand,etc.For any more information,please feel free to contact us directly.
Features of 280mm Dredge HDPE Pipe:
Excellent crack resistance
Light weight, one eight weight of steel pipe, easy for installation
Low water resistance coefficient, small friction resistance
High impact resistance,wear resistance,corrosion resistance
Flexible metal flange connection
Smooth inner surface,easy for transportation,long life service
Wonderful ability of resisting low temperature,non-toxic
Specifications of 280mm Dredge HDPE Pipe:
O.D. of Pipe(mm) |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
Working pressure--PN(MPa) |
|||||
0.6MPa |
0.8MPa |
1.0MPa |
1.25MPa |
1.6MPa |
|
Thickness of Pipe(mm) |
|||||
280 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
(Note:More Dredge HDPE Pipe can be customized according to customers' requirements.)

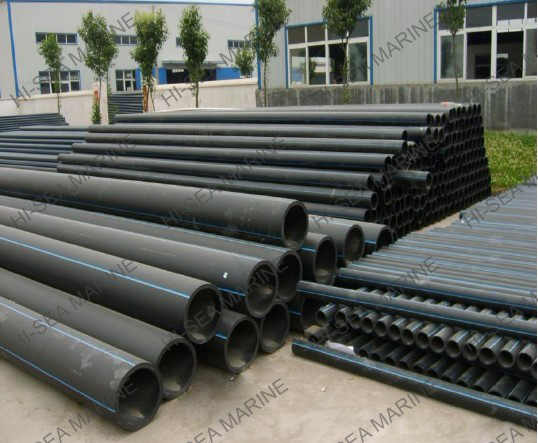

Picture of 280mm Dredge HDPE Pipe
