2CY Marine Gear Pump

[Search Related Products]

2CY Marine Gear Pump


Applications:


# 2CY Series Marine Gear Pump applies to deliver lubricating medium,such as oil ,bitumen, with the viscosity of 3-760cSt at temperature below 350<C

# The pump¨s working pressure range from 0.6Mpa to 2.5Mpa

# Flow rate range from 0.6m3/h to123 m3/h.

# The are mainly suited to fuel delivering, hydraulic engineering, shiping engineering, petrochemical and other industry fields.

# Standar seal:Mechanical seal,packing seal is available

Direction:CW seem from motor side



Performance Parameter



Series Name 2CY
Product Name Marine Gear pump
Feature All of pump's parts can be lubricated by delivered medium when working, with stable pump pressure,little discharge ,flow pulsation and higher volume efficiency .
Model

Capacity (m3/h)

NPSH (m)

Speed (r/min)

Motor power (kw)

Discharge pressure (Mpa)

HS-2CY-1.08/25 1.08 9.5 1420 2.2 2.5
HS-2CY-2.1/25 2.1 9.5 1420 3 2.5
HS-2CY-3/25 3 9.5 1440 4 2.5
HS-2CY-4.2/25 4.2 9.5 1440 5.5 2.5
HS-2CY-7.5/25 7.5 9.5 1440 7.5 2.5
HS-2CY-12/25 12 9.5 1460 15 2.5
Application

It can give performance as transferpump or booster pump in oil delivery system,and as fuel pump for delivery,pressurization and injection in fuel supply system .It can be also applied as hydraulic pump supplying hydraulic power in hydraulic system and in all industry fields as lubricating pump.

Medium tempreture Max.80≧
Certification CCS, BV etc.

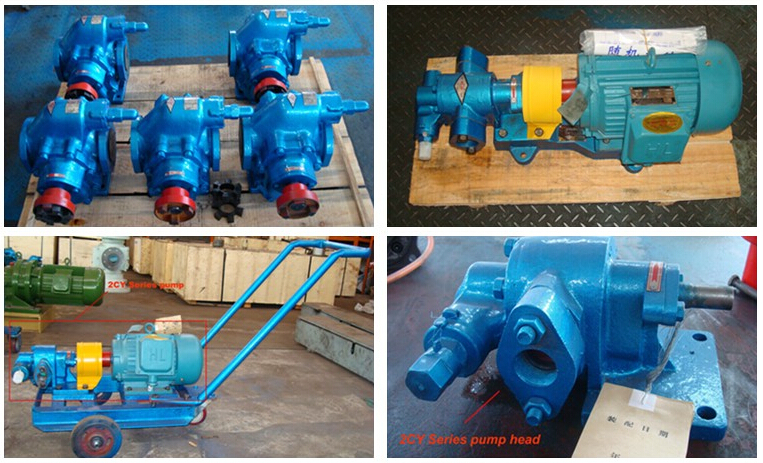

2CY Marine Gear Pump



Our2CY Marine Gear Pump Certification
