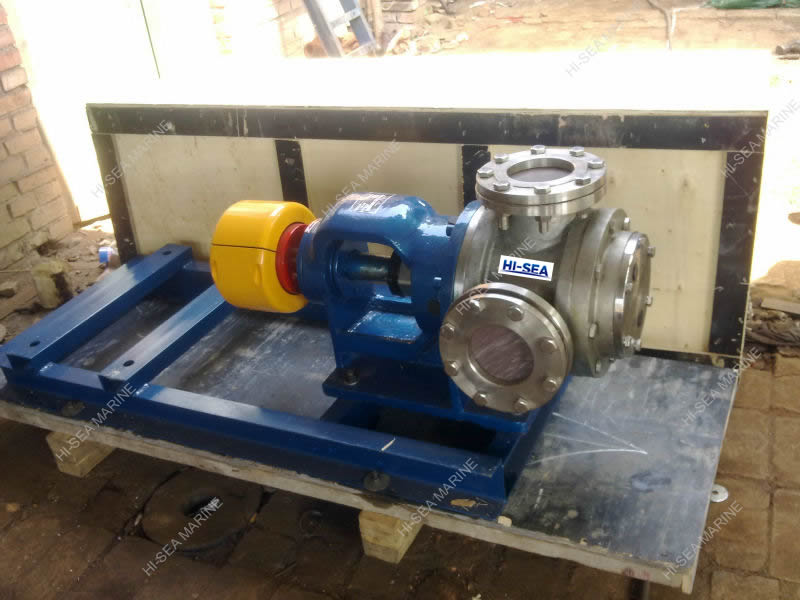

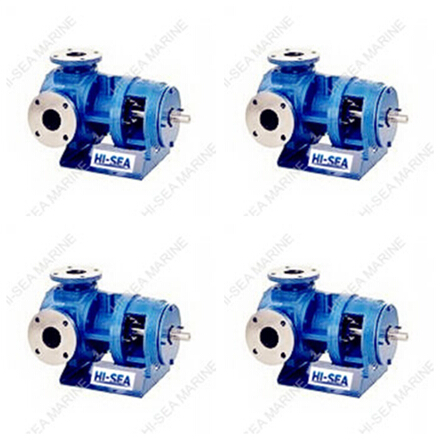

NYP Marine Internal Gear Pump
[Search Related Products]
Applications:
NYP Series Internal Gear Pump is a kind of new positive displacement marine pump, and is designed according to the different fields, requirement of petroleum, chemical industry, paint, medicine, foodstuff and so on. It widly applies to a variety of mediums with different property and viscosity because of special structure and selected different pump¡¯s materials.
Proper medium temperature: -10¡ãC~200¡ãC
Proper medium viscosity: 1.0cSt ~ 300.000 cSt
¡ô Advantages:
(1) Steady delivery without pulsation, little vibration and noise.
(2) Outstanding self-priming abitity.
(3) The pump can deliver the varied corrosion mediums if the proper material of parts selected. In addition, the working temperature can reach 200¡ãC
(4) The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
(5) The pump¡¯s flow capacity can be changed through adjusting the speed.
(6) It¡¯s specilly suited to deliver high viscosity medium.

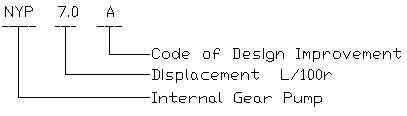

Model Explanations:
Performance Parameter
|
Model |
Diameter (mm) |
Displacement |
Viscosity |
Speed |
Differential pressure (MPa) |
Connection form |
|||
|
0.4 |
0.6 |
0.8 |
1.0 |
||||||
|
Shaft power (kw)/Capacity(L/min) |
|||||||||
|
NYP0.78 |
15 |
0.78 |
20 |
1390 |
0.17/9.3 |
0.23/9.0 |
0.28/8.8 |
0.32/8.6 |
G1/2' |
|
60 |
1390 |
0.18/9.5 |
0.24/9.2 |
0.28/9.0 |
0.33/8.9 |
||||
|
200 |
1390 |
0.31/10.4 |
0.35/10.2 |
0.39/10.0 |
0.43/9.9 |
||||
|
600 |
1390 |
0.39/10.4 |
0.44/10.3 |
0.48/10.3 |
0.52/10.2 |
||||
|
2000 |
910 |
0.23/6.8 |
0.27/6.8 |
0.30/6.8 |
0.33/6.7 |
||||
|
6000 |
720 |
0.24/5.4 |
0.31/6.1 |
0.30/6.8 |
0.40/6.8 |
||||
|
NYP2.3 |
25 |
2.3 |
20 |
1400 |
0.38/28.4 |
0.49/27.5 |
|
|
G1' |
|
60 |
1400 |
0.59/29.2 |
0.65/28.8 |
|
|
||||
|
200 |
1400 |
0.61/30.0 |
0.72/29.6 |
|
|
||||
|
600 |
1400 |
0.92/31.9 |
0.96/31.7 |
|
|
||||
|
2000 |
910 |
0.61/19.9 |
0.68/19.7 |
|
|
||||
|
6000 |
720 |
0.77/16.32 |
0.83/16.2 |
|
|
||||
|
NYP3.6 |
40 |
3.6 |
20 |
1450 |
0.69/46.7 |
0.94/45.9 |
1.18/45 |
1.44/43.4 |
|
|
60 |
1450 |
0.81/47.5 |
1.09/46.7 |
1.37/45.9 |
1.57/44.7 |
||||
|
200 |
1450 |
1.06/49.7 |
1.31/49.2 |
1.56/48.8 |
1.79/47.3 |
||||
|
600 |
1450 |
1.45/49.9 |
1.61/49.6 |
1.77/49.3 |
1.93/49 |
||||
|
2000 |
960 |
1.28/34.3 |
1.41/33.8 |
1.54/33.7 |
1.65/33.6 |
||||
|
6000 |
640 |
1.08/23.0 |
1.18/22.9 |
1.28/22.9 |
1.37/22.8 |
||||
|
20000 |
583 |
1.22/20.5 |
1.24/20.4 |
1.25/20.4 |
1.38/20.3 |
||||
|
60000 |
455 |
0.84/16.3 |
0.91/16.2 |
0.98/16.1 |
1.01/16 |
||||
|
NYP7.0 |
40 |
7.0 |
20 |
1450 |
1.36/98.1 |
1.8/96 |
2.0/94.7 |
2.4/93 |
|
|
60 |
1450 |
1.45/99 |
1.9/97 |
2.2/96.4 |
2.6/95 |
||||
|
200 |
1450 |
1.62/99.8 |
2.0/98 |
2.3/97.5 |
2.7/97 |
||||
|
600 |
960 |
1.4/62 |
1.6/65 |
1.8/44 |
2.0/64 |
||||
|
2000 |
960 |
1.8/67 |
2.0/66 |
2.3/65 |
2.6/65 |
||||
|
6000 |
640 |
1.5/44.5 |
1.7/44 |
1.8/44 |
2.0/44 |
||||
|
20000 |
583 |
1.6/40.5 |
1.9/40 |
2.1/40 |
2.2/40 |
||||
|
60000 |
455 |
1.46/31.5 |
1.8/31 |
1.9/31 |
2.0/31 |
||||
|
NYP24 |
50 |
24 |
20 |
720 |
1.8/165 |
2.3/161 |
2.8/158 |
3.4/155 |
Flange |
|
60 |
720 |
2.0/166 |
2.6/164 |
3.1/162 |
3.7/158 |
||||
|
200 |
610 |
1.9/143 |
2.5/141 |
3.0/139 |
3.5/136 |
||||
|
600 |
541 |
2.1/127 |
2.6/125 |
3.0/124 |
3.5/122 |
||||
|
2000 |
475 |
2.2/112 |
2.6/111 |
2.9/110 |
3.4/109 |
||||
|
6000 |
357 |
2.0/85 |
2.3/84 |
2.6/83 |
2.9/83 |
||||
|
20000 |
303 |
1.9/72 |
2.2/72 |
2.4/72 |
2.6/71 |
||||
|
60000 |
228 |
1.6/54 |
1.8/54 |
2.0/54 |
2.3/54 |
||||
|
NYP52 |
50 |
52 |
20 |
720 |
4.3/362 |
5.8/355 |
6.9/348 |
8.1/340 |
|
|
60 |
720 |
4.7/364 |
6.2/358 |
7.3/352 |
7.5/346 |
||||
|
200 |
610 |
4.6/309 |
5.9/304 |
6.9/300 |
8.0/294 |
||||
|
600 |
541 |
4.9/275 |
6.0/271 |
6.8/268 |
7.8/264 |
||||
|
2000 |
475 |
5.0/243 |
5.9/238 |
6.6/237 |
7.6/235 |
||||
|
6000 |
357 |
4.1/184 |
4.9/182 |
5.3/181 |
6.2/180 |
||||
|
20000 |
303 |
3.8/157 |
4.6/156 |
5.1/155 |
5.6/155 |
||||
|
60000 |
228 |
3.1/119 |
3.7/118 |
4.0/118 |
4.5/118 |
||||
|
NYP80 |
80 |
80 |
20 |
615 |
5.2/471 |
6.9/461 |
8.5/451 |
10.0/433 |
|
|
60 |
615 |
5.5/474 |
7.2/465 |
8.8/457 |
10.5/448 |
||||
|
200 |
544 |
5.7/421 |
7.2/414 |
8.6/408 |
10.1/401 |
||||
|
600 |
479 |
6.0/372 |
7.3/367 |
8.5/362 |
9.8/356 |
||||
|
2000 |
417 |
6.5/326 |
7.7/322 |
8.9/319 |
10.1/315 |
||||
|
6000 |
305 |
5.6/239 |
6.6/237 |
7.5/326 |
8.4/233 |
||||
|
20000 |
228 |
5.5/180 |
6.4/179 |
6.9/178 |
7.7/177 |
||||
|
60000 |
188 |
5.5/149 |
6.1/149 |
6.7/149 |
7.2/148 |
||||
|
NYP111 |
80 |
111.4 |
20 |
615 |
6.7/660 |
9.2/647 |
11.2/634 |
13.6/622 |
|
|
60 |
615 |
6.9/664 |
9.4/652 |
11.5/642 |
13.9/631 |
||||
|
200 |
544 |
7.1/589 |
9.3/580 |
11.0/573 |
13.2/563 |
||||
|
600 |
479 |
7.3/521 |
9.5/514 |
11.1/508 |
13.1/502 |
||||
|
2000 |
417 |
7.7/455 |
9.7/450 |
11.0/447 |
12.7/442 |
||||
|
6000 |
305 |
6.9/335 |
8.4/332 |
9.4/331 |
10.6/328 |
||||
|
20000 |
228 |
6.3/251 |
7.5/250 |
8.2/249 |
9.2/248 |
||||
|
60000 |
188 |
6.2/209 |
7.1/208 |
7.6/208 |
8.5/207 |
||||
|
NYP160 |
100 |
160 |
20 |
600 |
8.9/930 |
12.1/916 |
15.3/902 |
17.5/888 |
|
|
60 |
600 |
9.4/935 |
12.6/922 |
15.8/910 |
19.0/898 |
||||
|
200 |
550 |
12.3/866 |
15.3/859 |
18.3/852 |
21.3/845 |
||||
|
600 |
480 |
10.2/754 |
12.8/747 |
15.4/740 |
18.0/737 |
||||
|
2000 |
355 |
9.1/560 |
11.1/556 |
13/552 |
15.1/548 |
||||
|
6000 |
319 |
10.0/505 |
11.7/502 |
13.5/500 |
15.2/497 |
||||
|
NYP220 |
125 |
220 |
20 |
430 |
8.8/902 |
11.9/880 |
15.0/858 |
18.0/836 |
|
|
60 |
430 |
9.0/909 |
12.0/890 |
15.0/871 |
18.0/852 |
||||
|
200 |
355 |
8.5/753 |
11.1/739 |
13.7/726 |
16.3/713 |
||||
|
600 |
320 |
9.4/682 |
11.8/671 |
14.1/660 |
16.5/649 |
||||
|
2000 |
254 |
9.1/544 |
11.0/537 |
13.0/530 |
15.1/523 |
||||
|
6000 |
244 |
10.1/483 |
11.9/478 |
13.6/473 |
15.4/468 |
||||
|
20000 |
160 |
9.1/347 |
10.5/345 |
11.9/343 |
13.3/341 |
||||
|
60000 |
117 |
8.4/256 |
9.4/255 |
10.4/254 |
11.4/253 |
||||
|
NYP320 |
125 |
320 |
20 |
430 |
13.0/1306 |
18.0/1270 |
22.0/1235 |
26.0/1200 |
|
|
60 |
430 |
13.0/1316 |
18.5/1285 |
22.0/1255 |
26.5/1225 |
||||
|
200 |
355 |
11.8/1091 |
15.5/1068 |
19.1/1046 |
22.8/1024 |
||||
|
600 |
320 |
13.2/987 |
16.5/968 |
19.7/950 |
22.9/932 |
||||
|
2000 |
284 |
14.2/881 |
17.4/867 |
20.6/854 |
23.8/841 |
||||
|
6000 |
222 |
13.7/693 |
16.2/684 |
18.7/675 |
21.2/666 |
||||
|
20000 |
168 |
13.2/529 |
15.3/525 |
17.3/522 |
19.4/519 |
||||
|
60000 |
125 |
12.0/397 |
13.7/396 |
15.3/395 |
16.9/394 |
||||
|
NYP650 |
150 |
650 |
20 |
315 |
19.0/1921 |
26.0/1857 |
33.0/1794 |
|
|
|
60 |
315 |
20.0/1940 |
26.4/1886 |
33.2/1832 |
|
||||
|
200 |
284 |
17.9/1756 |
24.0/1711 |
30.4/1666 |
|
||||
|
600 |
253 |
17.6/1572 |
22.7/1534 |
28.9/1500 |
|
||||
|
2000 |
196 |
15.7/1225 |
20.6/1201 |
24.5/1176 |
|
||||
|
6000 |
160 |
16.0/1008 |
19.8/993 |
22.3/978 |
|
||||
|
20000 |
117 |
13.6/745 |
16.5/738 |
19.2/731 |
|
||||
|
60000 |
100 |
15.0/645 |
17.2/643 |
19.5/640 |
|
||||
|
NYP727 |
150 |
727 |
20 |
315 |
21.5/2135 |
29.4/2058 |
37.3/1980 |
|
|
|
60 |
315 |
22.4/2157 |
29.8/2090 |
37.3/2026 |
|
||||
|
200 |
280 |
19.6/1928 |
26.7/1874 |
33.5/1820 |
|
||||
|
600 |
245 |
19.6/1696 |
25.1/1652 |
31.2/1611 |
|
||||
|
2000 |
200 |
18.7/1394 |
23.3/1363 |
28.5/1334 |
|
||||
|
6000 |
170 |
19.2/1195 |
23.3/1175 |
27.9/1155 |
|
||||
|
20000 |
125 |
17.0/888 |
20.1/878 |
23.3/868 |
|
||||
|
60000 |
100 |
16.8/720 |
19.5/717 |
22.3/713 |
|
||||
|
NYP1670 |
200 |
1670 |
20 |
250 |
38.0/3852 |
52.0/3690 |
66.0/3529 |
|
|
|
60 |
250 |
40.0/3900 |
54.0/3763 |
68.0/3626 |
|
||||
|
200 |
225 |
37.5/3535 |
50.0/3424 |
62.5/3313 |
|
||||
|
600 |
195 |
37.0/3079 |
48.0/2990 |
58.6/2900 |
|
||||
|
2000 |
160 |
35.0/2547 |
44.0/2485 |
53.0/2422 |
|
||||
|
6000 |
135 |
34.6/2177 |
42.0/2138 |
50.0/2100 |
|
||||
|
20000 |
112 |
35.0/1830 |
41.5/1810 |
48.0/1790 |
|
||||
|
60000 |
85 |
36.0/1405 |
35.7/1400 |
40.6/1392 |
|
||||

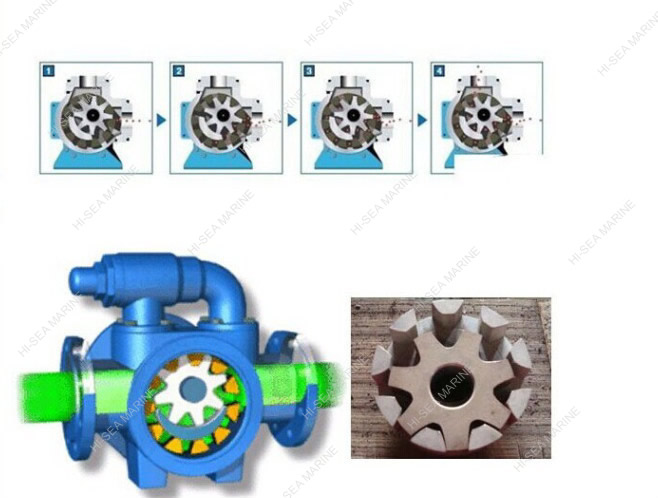

Structure
