LYB Marine Vertical ARC Gear Pump



Applications:


LYB vertical arc gear pump is for oil or equivalent liquid without solids and fiber with normal temperature below 300¡ãC. It is mainly used as oil delivering pump or boost pump in oil system or plants.

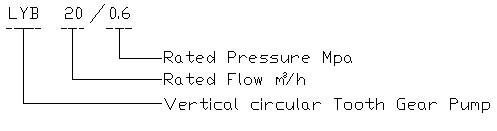

Model Explanation:


LYB Marine Vertical ARC Gear Pump


Mechanical Parameter


Working Principle: Gear
Main applications: Oil
Driver: Electric motor
Power Specs: 380/415 V 3phase; 50hz/60hz,etc
Max. permissible fluid temperature: 80 ¡ãC
Type of connection: Flange, Coupled.
Installation position: Horizontal
Casing/Inner parts material: Cast iron, /Cast iron, Bronze
Shaft seal type: Shaft seal ring; Mechanical seal; Packing Seal
Free passage: 00 mm
Maximum viscosity: 1X103CST
Maximum drive rating: 22 kW (30hp)
Maximum caliber: 4 inch (100mm)
Maximum discharge-side pressure: 0.6 mpa (6bar)


Performance Parameter



Model

Diameter

Rated Capacity

(m3/h)

Rated Pressure

Inlet&Outlet

60Hz

50Hz

Mpa

1180rpm

900rpm

970rpm

720rpm


LYB20

¦Õ100&¦Õ80


24


20







0.6

LYB25

30


25


LYB30

¦Õ125&¦Õ100

36


30


LYB40



¦Õ150&¦Õ125


48


40


LYB50

61


50


LYB65


65


55

LYB80


80


65

LYB90


90


75

LYB100

¦Õ200&¦Õ150



100


85

LYB150


150


125

LYB175

¦Õ250&¦Õ200



175


145

LYB200


200


165

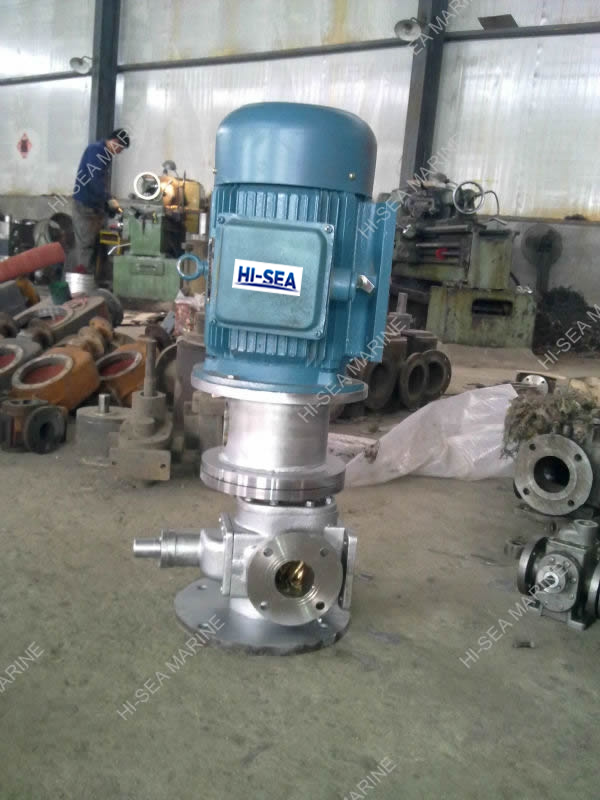

Photo:
