KCB Marine Gear oil Pump

Applications:


The KCB Series Gear Oil Pump, horizontal rotary pump, are suitable for transferring various lubricating fluids such as crude oil, heavy oil and industrial light oil, etc. The temperature of the oil can not be over 60¡æ and the viscosity of the oil can not be greater than 10¡ãE. It is not adoptable, however, for the gear oil pump to convey those fluid medium with too much sulfur, hard grain impurities and corrosive substance as well as those medium of high volatility and low flashing point, such as gasoline, benzene, etc.It can give performance as transfer pump or booster pump in oil delivery system. It can be also applied as a fuel pump for delivery system, pressurization and injection in fuel supply system and in all industry fields as lubricating pump.



Model Explanation

for example KCB-300

KCB ¡ª Gear Pump(containing safety backflow valve), upgrade for 2CY type

300 ¡ª Flow 300 L/min


Performance Parameter



Series Name KCB
Product Name Marine Gear Oil Pump
Feature Designed with safty valve for protection against overload, All of pump's parts can be lubricated by delivered medium when working.
Model

Capacity

(m3/h)

NPSH

(m)

Speed

(r/min)

Motor power

(kw)

Discharge pressure

(Mpa)

HS-KCB-18.3

1.1

5

1400

1.5

1.45

HS-KCB-55

3.3

7

1400

1.5

0.33

HS-KCB-83.3

5

7

1420

2.2

0.33

HS-KCB-135

8

5

940

2.2

0.33

HS-KCB-200

12

5

1440

4

0.33

HS-KCB-300

18

5

960

5.5

0.36

HS-KCB-483.3

29

5.5

1440

7.5

0.36

HS-KCB-633

38

6

970

11

0.28

HS-KCB-960

58

6.5

1470

18.5

0.28

HS-KCB-1200

72

7

740

37

0.6

HS-KCB-1600

95

7

980

45

0.6

HS-KCB-1800

110

7.5

740

55

0.6

HS-KCB-2500

170

7.5

980

75

0.6

Application

marine pump can give performance as transfer pump or booster pump in oil delivery system.It can be also applied as a fuel pump for dilivery system,pressurization and injection in fuel supply system and in all industry fields as lubricating pump

Medium tempreture Max.80¡æ
Certification CCS, BV etc.

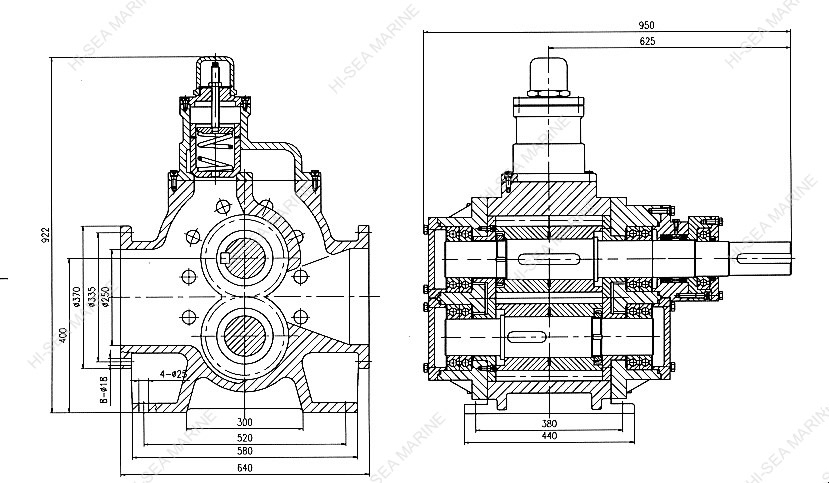

Structure



KCB Marine Gear oil Pump








KCB Marine Gear oil Pump
