LB Marine Gear Pump for Refrigerator

Applications:

LB-Type Gear Pump for Refrigerator is used in transferring N32 or N46 refrigerated lubricating and other lubricant oil of ammonia machine or freon machine.The suited temperature of the refrigerator gear pump is 10°c~80°C.

Model Explanation

for example LB 20/0.6

LB: Special use for refrigerator/Gear pump

20: Capacity 20m³/h

0.6: Differential pressure 0.5MPa

Performance Parameter

Model	Inlet/outlet diameter (mm)	Special capacity		Differential pressure (MPa)	Max. differential pressure (Mpa)	Electric motor
		(m3/h)	(L/min)			Power (kw)	Speed (r/min)	Model
LB1.8	20	1.8	30	0.5	2.5	0.55	1390	Y801-4
LB3.6	25	3.6	60	0.5	2.5	1.1	910	Y90L-6
LB10	40	10	166.7	0.5	2.5	3	1420	Y100L2-4
LB12	40	12	200	0.5	2.5	3	1420	Y100L2-4
LB20	80	20	333.3	0.5	2.5	5.5	960	Y132M2-6
LB25	80	25	416.7	0.5	2.5	7.5	970	Y160M-6
LB40	100	40	666.7	0.5	2.5	11	970	Y160L-6

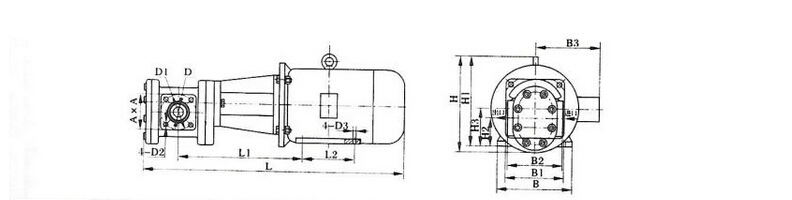

Structure
